| RESCUE EQUIPMENT > WEBER > WEBER RESCUE SYSTEMS >
SPREADERS |
|
The new WEBER-HYDRAULIK spreader offers outstanding performance due to the new improved tip design, with increased spreader surface which has been developed following extensive user feedback. In addition a new hardened wear resistant imprint on the inner and outer arms, ensures even greater bite and grip further preventing slip and movement during spreading operations. A peeling section integrated in the tip design combined with a compact construction due to folding handles, ensures the new generation of spreaders can be operated in previously unachievable locations.
The anodised gold coating gives the surface an anti wear finish ensuring that all WEBER rescue tools are perfectly suited to the demanding RTC environment.
Like all WEBER-HYDRAULIK Rescue Equipment the spreaders are equipped with the unique Weber push button control, giving safe, sensitive and precise operation in all conditions.
|
| |
| Spreaders |
SP 35 L |
SP 43 XL |
SP 49 |
SP 60 |
SP 80 |
| spreading force in working range* |
38 - 132 kN |
46 - 203 kN |
54 - 330 kN |
68 - 430 kN |
90 - 470 kN |
| closing force* |
99 kN |
74 kN |
101 kN |
110 kN |
102 kN |
| spreading distance |
620 mm |
820 mm |
710 mm |
810 mm |
620 mm |
| weight |
18,3 kg |
20,5 kg |
19,9 kg |
24,7 kg |
25 kg |
| rEN-class |
AS 35/620-18 |
AS 43/770-21 |
AS 49/670-20 |
BS 63/810-25 |
CS 87/600-25 |
* according EN 13204 at 700 bar
SP 35 L
New, extreme lightweight spreader
- Arms and cylinder housing made of high strength aluminium alloy with wear-resisting surface
- Lightweight and well balanced tool
- Space-saving slim shape with parallel arms
- Two handles, including a collapsible handle useable also for carrying.
Back to top

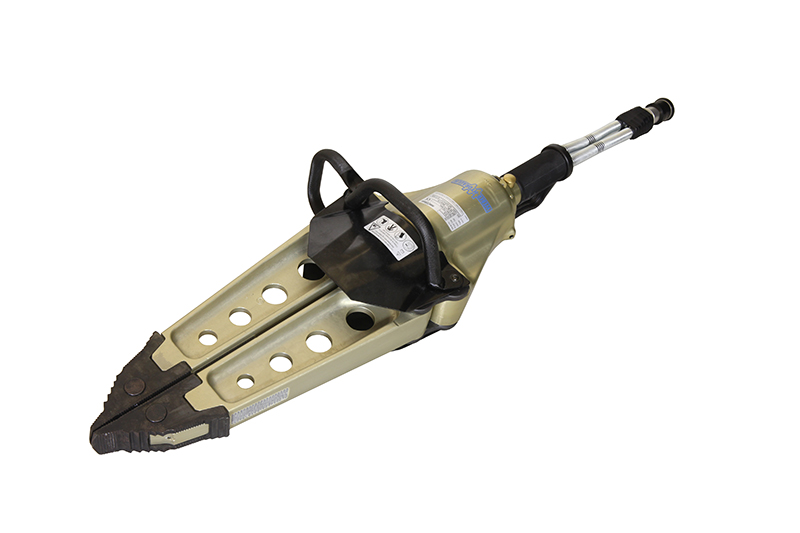

SP 43 XL
Lightweigt spreader with large spreading distance for all requirements.
- extended tip design with integrated peeling section
- space-saving, slimline shape
- compact design
Back to top
SP 49
THE standard spreader for all applications.
- New, extended tip design with integrated peeling section
- Lightweight and well balanced
- Compact and space saving design
- High-strength aluminium alloy for optimised weight
Back to top
SP 60
Heavy-duty spreader.
- Arms are made of high-strength aluminium alloy with wear-resistant finish
- Reduced weight due to use of lightweight, aerospace developed materials
- New tip design for all requirements
Back to top

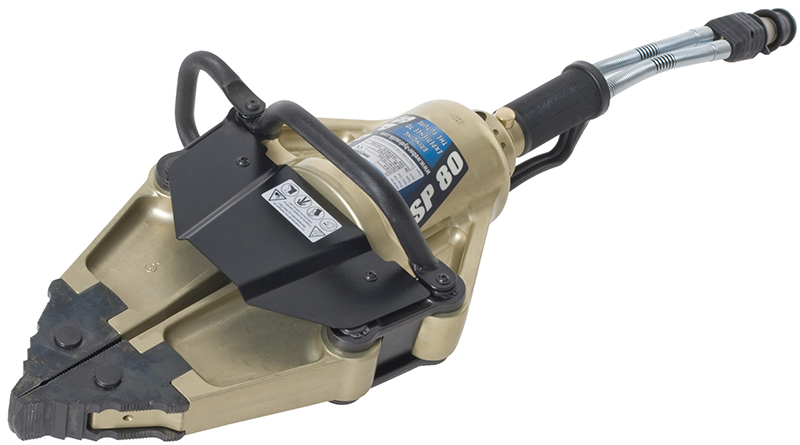

SP 80
THE heavy-duty spreader.
- The ultimate spreader
- New tips with integrated peeling section
- Compact design
- Arms are made of high-strength aluminium alloy with wear-resistant finish
