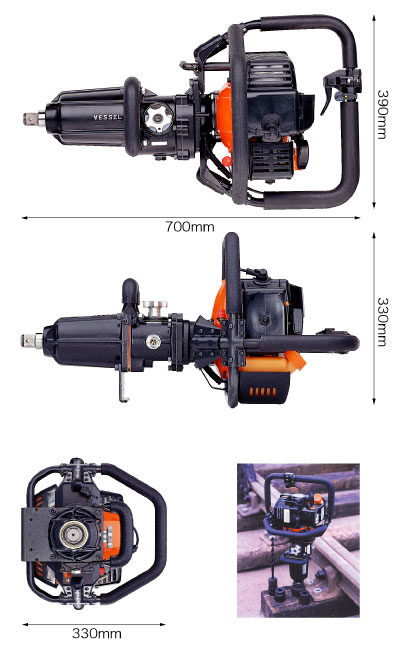

- Portable impact wrench, which does not require any external power supply. Handy for remote areas.
- More than 10000 units have been sold all over the world. The standard tool for railway maintenance throughout the world.
- Wrenching torque is guaranteed by our long history as one of the world’s leading makers of heavy and high-torque pneumatic impact wrenches.
- Its gasoline engine is specifically designed for powerful, high-impact wrenching
- CE compliant / Full Emission Control directive compliance
- Vibration reduced model is also available. (Please inquire us).
| Overall length |
Weight |
EDP No. |
| mm |
kg |
| 700 |
19.5 |
338510 |
Engine
Type:Two Stroke, Forced, Air Cooled, Single Cylinder
Displacement:46.5cc, Φ43×32mm(Inner bore size×stroke)
Fuel Tank Capacity:1 liter
Fuel Mixture Ratio:25:1(gasoline:2 cycle oil)
Revolution(idling):2700 rpm ±250
Revolution(loaded, impact):7120 rpm
Revolution(non loaded, max):9880 rpm
Ignition
Type:Electronic
Spark Plug Type:NGK BPMR6A
Carburetor
Type:Diaphragm
Impact
Square Driver Size:25.4mm(1″)
Fastening Torque Range:1700 N.m(Full Throttle:1255 ft.lbf)/950 N.m(Half Throttle:701 ft.lbf)
Free Speed:1200 rpm
Capacity
Bolt Diameter:32mm(1 1/4″)

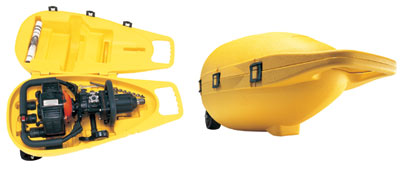

”Yellow Guppy”Carrying Case /No.3500 GP
W450mm×L920mm×H430mm
Weight : 6kg(Case only)
|
