| ELECTRIC TOOLS

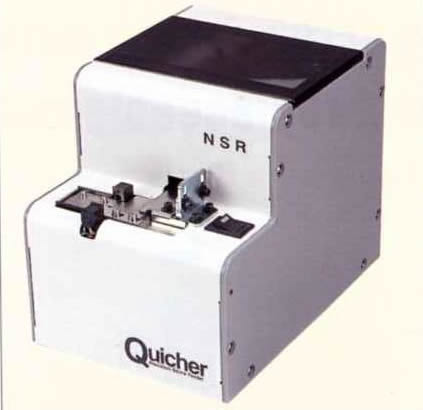

> QUICHER > NSR SERIES |
| Quicher is easy to rearrange the
production line to meet the change of screw diameter and form.
Quicher also helps you to improve the quality control and productivity. |
| |
 |
- Applicable screw size: from M1.0 to M3.0
- Scooping chamber capacity: 80cc
- With protection and recovery circuit
- Easily to exchange of NSR rail
|
One Quicher can cope with eight different sizes of screws |

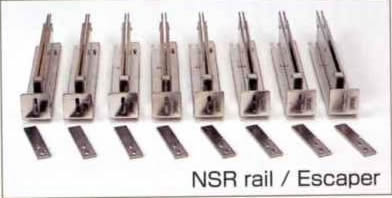

The NS series cope with eight dirrerent
sizes of screws just by replacing the rail ( 8 sizes from
M1.0 to M3.0)
|
Easy to replace rail |
Quicher NSB series is easy to replace the
rail to meet the change of screws.
|
|
| |
Others |
Example of NSR and Robot  |
| NSR Series |
| Screw Nominal Size |
M1.0 |
M1.2 |
M1.4 |
M1.7 |
| Applicable Rail |
SRR10 |
SRR12 |
SRR14 |
SRR17 |
| Screw Nominal Size |
M2.0 |
M2.3 |
M2.6 |
M3.0 |
| Applicable Rail |
SRR20 |
SRR23 |
SRR26 |
SRR30 |
|
|
| Specification |
Model Name & Number |
NSB |
NSR |
| Size |
123(W)x181(D)x145(H) |
123(W)x181(D)x145(H) |
| Weight (including rail) |
Approx. 2.92 Kg |
Approx. 3.01 Kg |
| Power Source |
AC 100V. DC 12V 500mA. AC adapter |
| Protection & Recorvery Circuit |
Motor overload stop. Protection circuit for reverse power connection |
| Applicable Screw |
Form M1.0 to MN3.0 (Refer right table for applicable rails) |
Applicable Screw Length
(under head) |
Up to 20mm
|
| Scooping Chamber Capacity |
80 cc
|
| Accessories (in package) |
Instruction Manual
Allen Wrench (L shaped. 2mm)
AC adapter
Passage Window
(each of two types)
0.35mm Gauge Plate
(to adjust holding plate)
|
Instruction Manual
Allen Wrench (L shaped. 2mm)
AC adapter
Passage Window (each of two types)
|
|
The products shown above are only a small part
of series,
please contact us for
your enquiry. |
| |
