Specifications Model	Capacity (kg)	Min. H (mm)	Max. H (mm)	Table / Fork Size (mm)			Overall Length (mm)	Overall Width (mm)	Overall Height (mm)	Steering Wheel (mm)	Load Wheel (mm)	Number of Lifting times	Net Weight (kg)
				Load Center	Width	Length
SC-2-8-A	200	160	800	300	540	600	915	540	975	Double Wheel Elastomer 130-x-65	Urethane 130x40	15	45
SC-2-12-A			1150						1325			22	50
SC-4-8-A	400		800	350	600	650	980	600	965			32 (10)	61
SC-4-12-A			1150						1315			50 (16)	66
SC-2-8L-A	200	95	730	300	540	600	935	540	975	Double Wheel Elastomer 130 x 65	Urethane 75 x 32	15	48
SC-2-12L-A			1080						1325			22	53
SC-4-8L-A	400		730		600	650	1015	600	965		Urethane 80 x 38	32 (10)	65
SC-4-12L-A			1080						1315			50 (16)	70

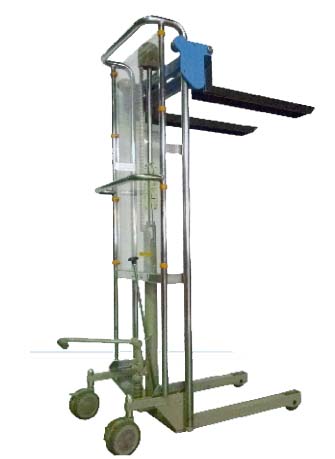

SC-4-15	400	160	1580	350	600	650	1060	600	1675	Double Wheel Elastomer 130x65	Urethane 130x40	69 (23)	81
SC-D4-15*
SC-4-15L		95	1510	300			1095				Urethane 80x38		85
SC-D4-15L*
SC-4-15F		80 (95)	1500		215-570		1140	605					85
SC-D4-15F*
