| MATERIAL HANDLING
EQUIPMENT > OPK >
ORDER PICKER |
| OPK Order Picker is the best assistant
for material handling inside Library, Logistic Operation, Store,
Warehouse and University. It eliminates the danger of using
ladder to move the heavy cargoes. Take your right option and
use our order picker. |
| |
|
| |
| Model |
SCP-D2-15 |
| Capacity (kg) |
200 |
| A (mm) |
670 |
| B (mm) |
1500 |
| C (mm) |
600 |
| D (mm) |
300 |
| E (mm) |
300 |
| F (mm) |
1040 |
| G (mm) |
630 |
| H (mm) |
1210 |
| Steering Wheel (mm) |
150 x 45 |
| Loading Wheel (mm) |
150 x 45 |
| Battery |
DC12V 28AH/5HR |
| Rising time(sec) |
4 - 7 |
| Falling time(sec) |
4 - 9 |
| Net Weight (kg) |
112 |
|
| Model |
PPLW-D200-27 |
| Capacity (kg) |
200 |
| A (mm) |
470 |
| B (mm) |
2730 |
| C (mm) |
625 |
| D (mm) |
600 |
| F (mm) |
1335 |
| G (mm) |
750 |
| H (mm) |
1745 |
| Steering Wheel (mm) |
130 x 35 |
| Loading Wheel (mm) |
150 x 38 |
| Rising time(sec) |
9 - 15 |
| Falling time(sec) |
13 - 22 |
| Battery |
AC 100V 50/60Hz |
| Power Consumion |
12V 1.5kW |
| Net Weight (kg) |
270 |
|
| Model |

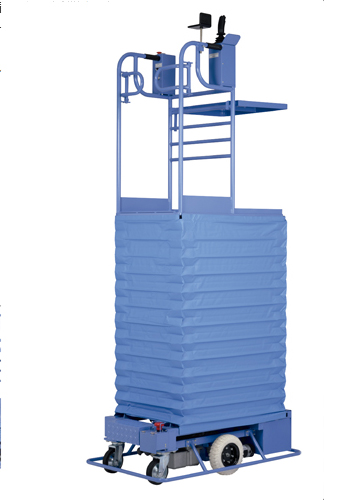

LT-P50-15 |
| Capacity (kg) |
Table: 50; Passenger: 100 |
| A (mm) |
1180 |
| B (mm) |
2270 |
| C (mm) |
450 |
| D (mm) |
600 |
| E (mm) |
225 |
| F (mm) |
1220 |
| G (mm) |
750 |
| H (mm) |
1580 |
| Steering Wheel (mm) |
100 x 35 |
| Loading Wheel (mm) |
150 x 42 |
| Rising time (sec) |
6 - 8 |
| Falling time (sec) |
11 - 16 |
| Battery |
DC12V 50AH/5HR*2 |
| Net Weight (kg) |
240 |
|
The products shown above are only a small part
of series,
please contact us for
your enquiry. |
| |
