Ultrasonic Leakage Detector

Simple detecting device for fast, easy and efficient leakage search

The new Ultrasonic Leakage Detector finds the leak fast, easy and efficient reducing energy costs considerably

The detection device is ”EASY” to operate without any training at all – you simply use it. A leak will produce an audible sound in the headset and even tiny leaks can be detected from 15 - 20 meters away.

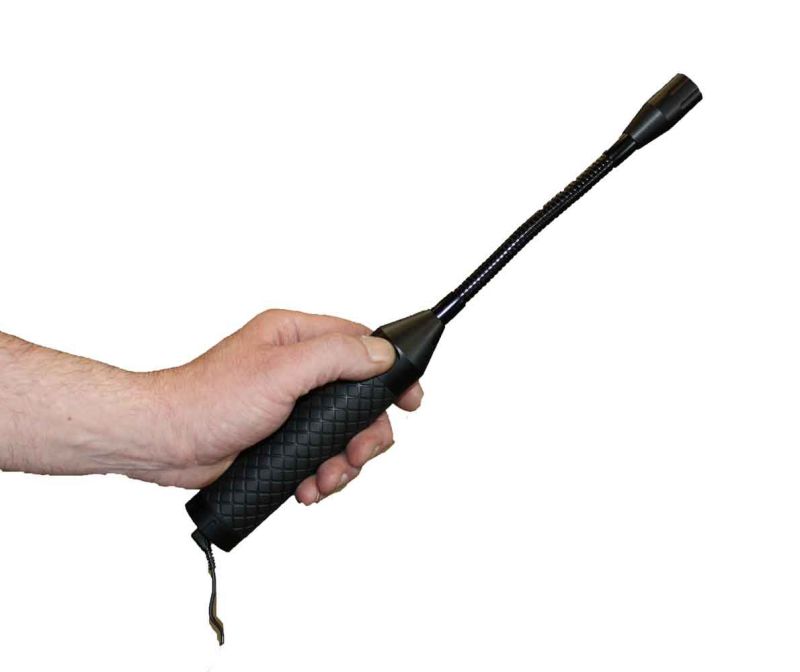

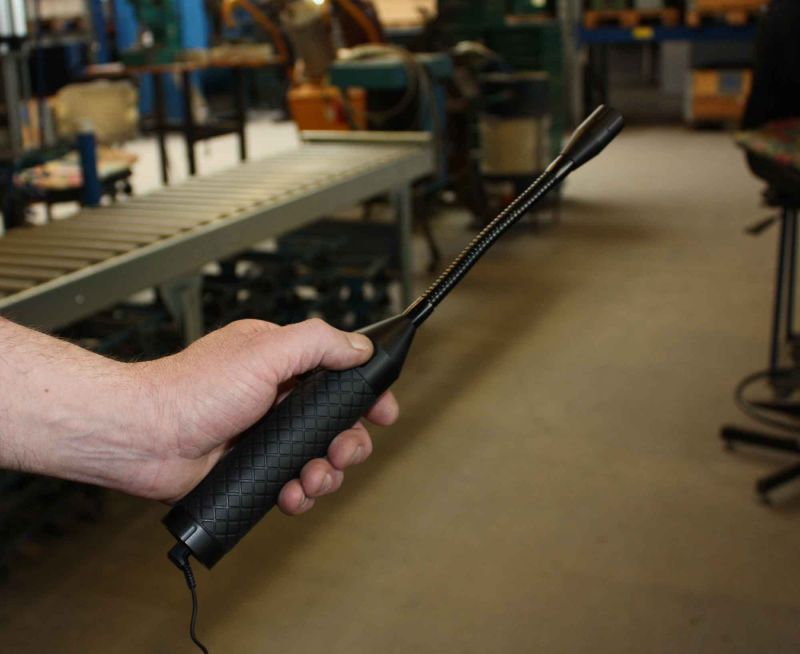

The device is equipped with a gooseneck allowing acces to hard to reach hoses and connections.

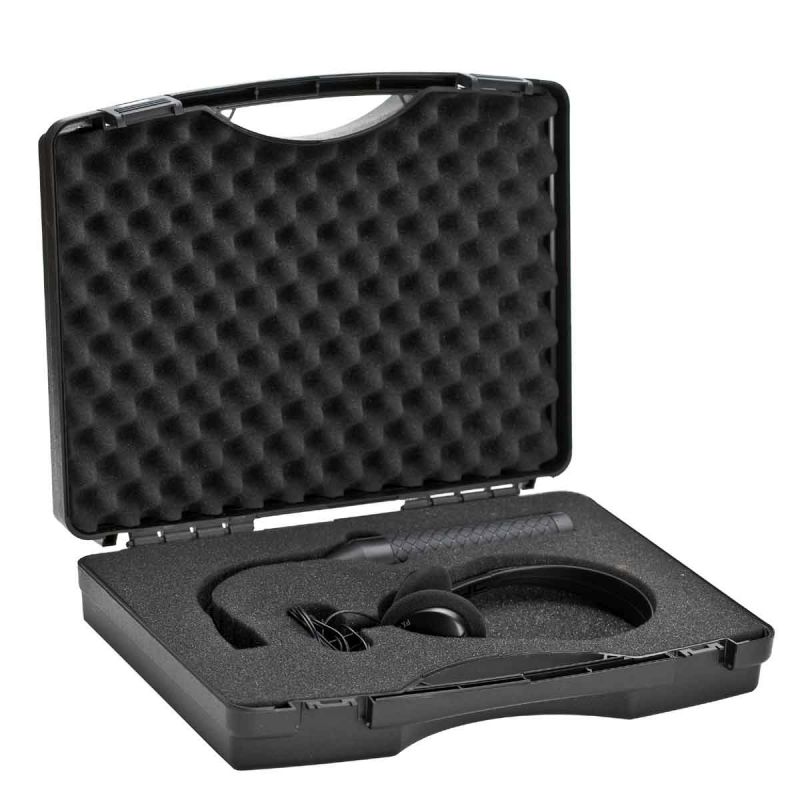

The small, light and handy Ultrasonic Leakage Detector is delivered in a sturdy case.

Technical Specifications

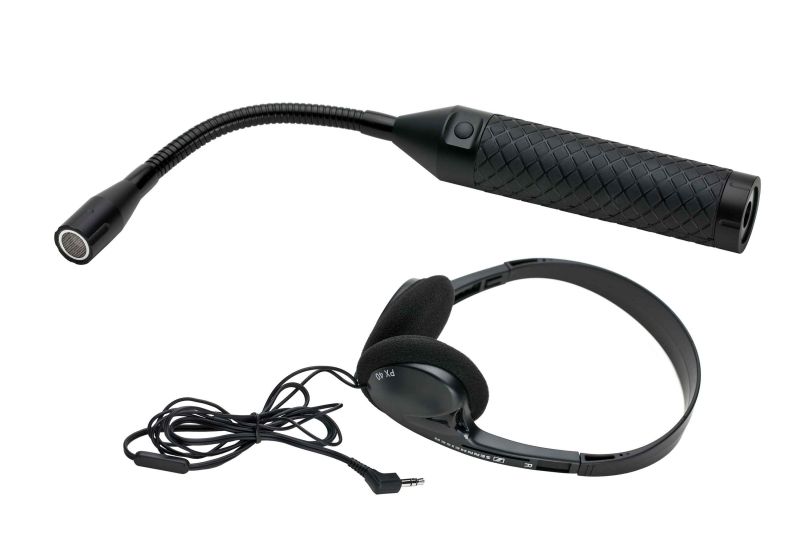

• Including light-weight headset with volume control
• Frequency range: 38 – 42 kHz
• Maximum distance to leak (7 bar, size Ø0.5 mm): 20m
• Battery: 9V (PP3 / 6LR61), alkaline
• Operating time: more than 25hours
• Operating temperature: -10°C til +45°C
• Weight: 270 g

Supplementary accessory
A headset with mini jack-plug and volume control os offered as supplementary accessory.

Reduce your electricity bill

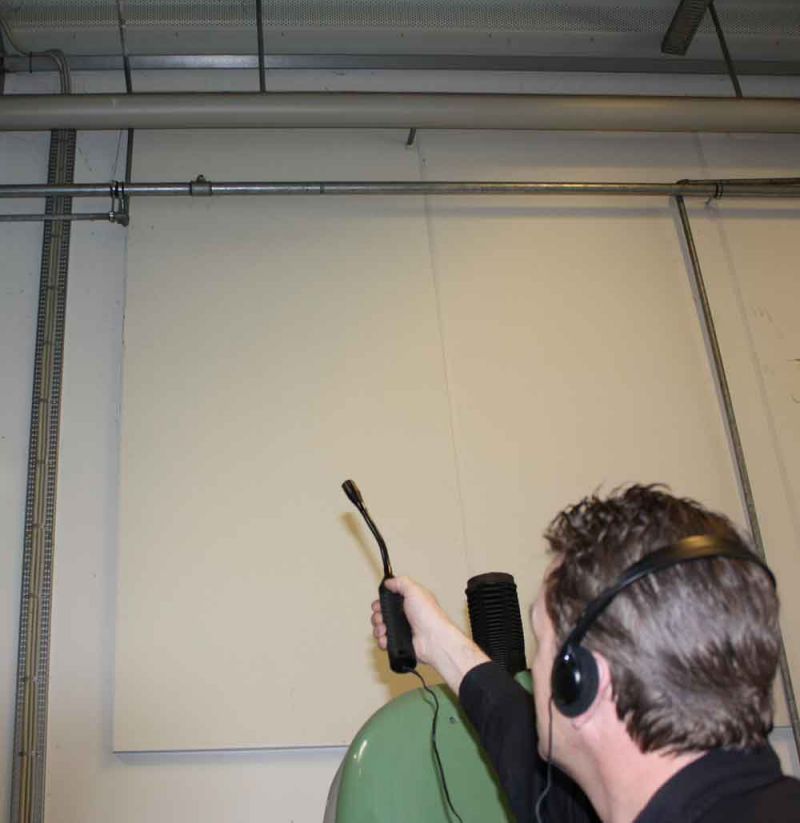

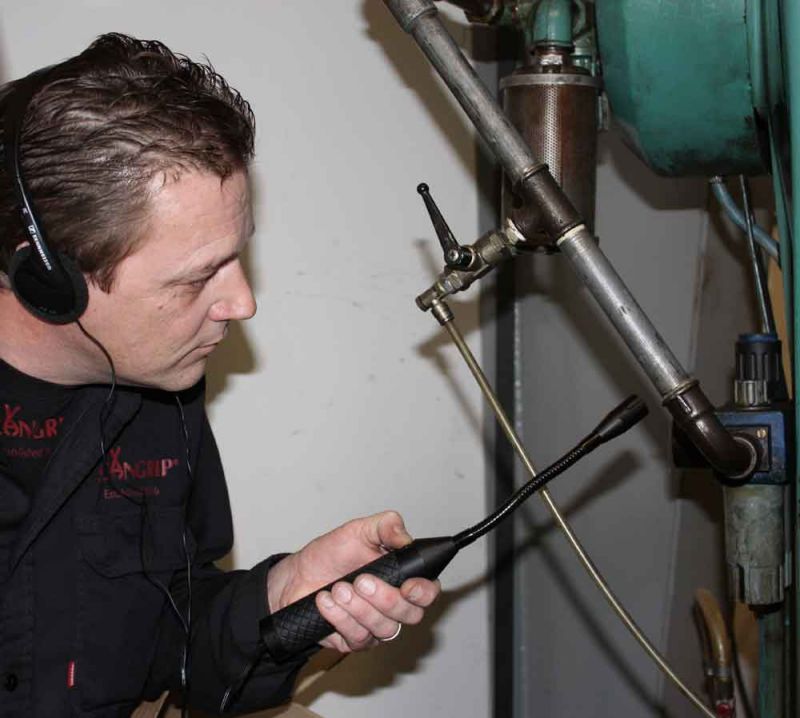

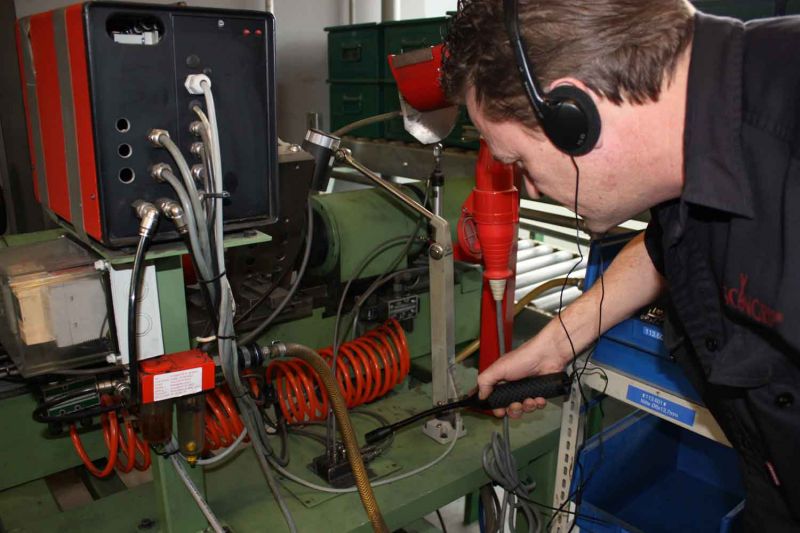

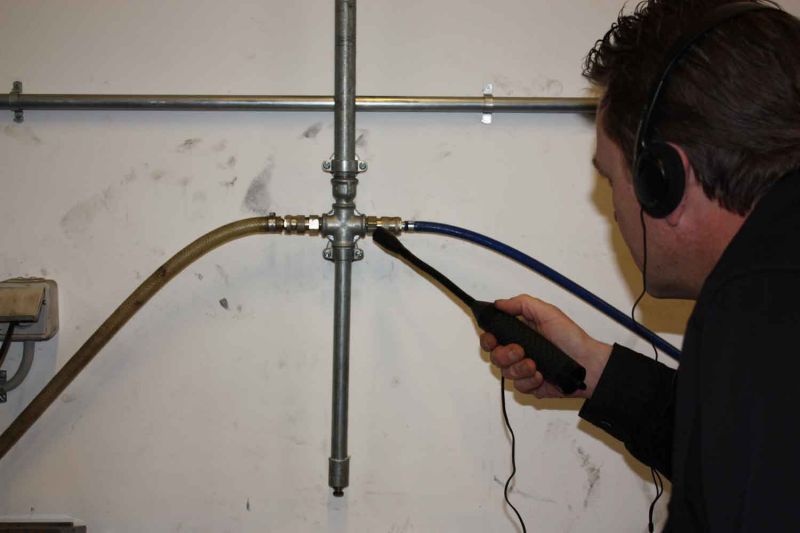

For the vast majority of industrial operations the electricity costs are substantial and even the smallest leaks in the compressed-air plant put the compressor on overtime. Leakage Detector effectively finds the leaks that are often easily repaired giving substantial energy costs savings. This makes Leakage Detector a very sound investment, that will return its worth many times.

Find the puncture fast and easy

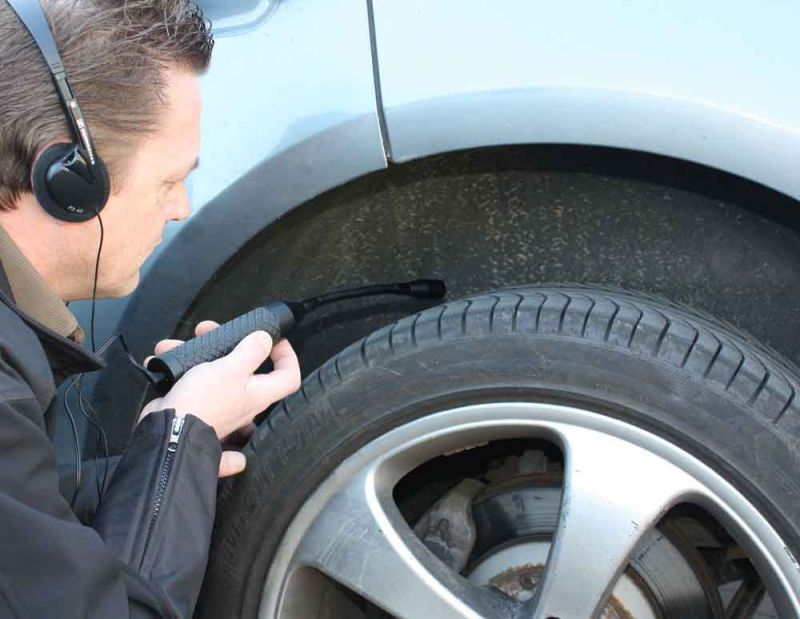

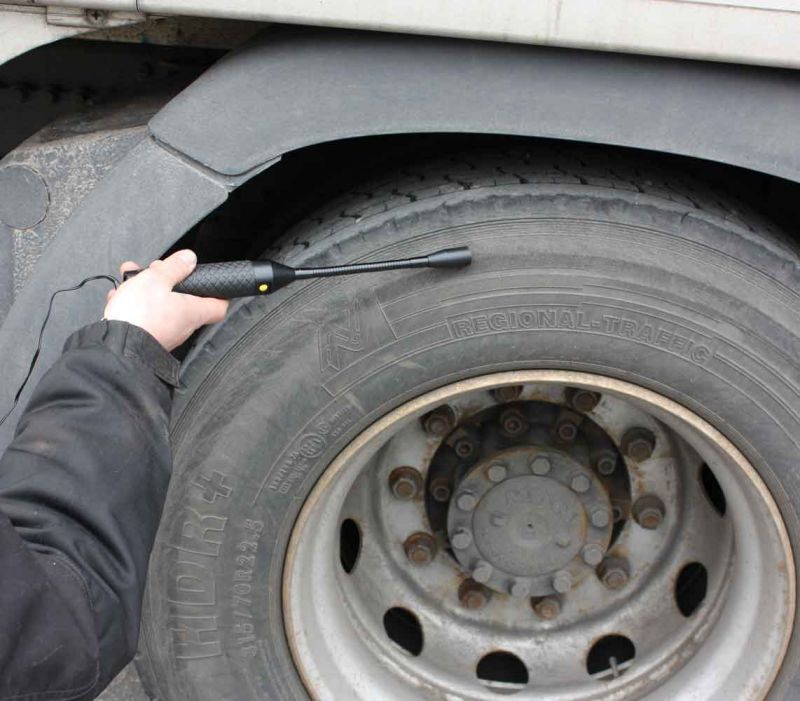

In the garage, the new Leakage Detector is also a very useful tool. Leakage Detector detects even the smallest invisible leaks. No need for use of chemicals or the time consuming soaping in of the tyre - not to mention the laborious method using water, which means everything gets wet - including the mechanic.

Avoid costly repairs of the air suspension or brake system on truck and busses
Leaks in the air suspension system on trucks, busses and SUV's usually result in replacing the pneumatic shock absorber, although it would be possible simply to repair the leak. Leakage Detector is the ideal tool for fast and easy detection of even the smalles leaks - also in side the car body.

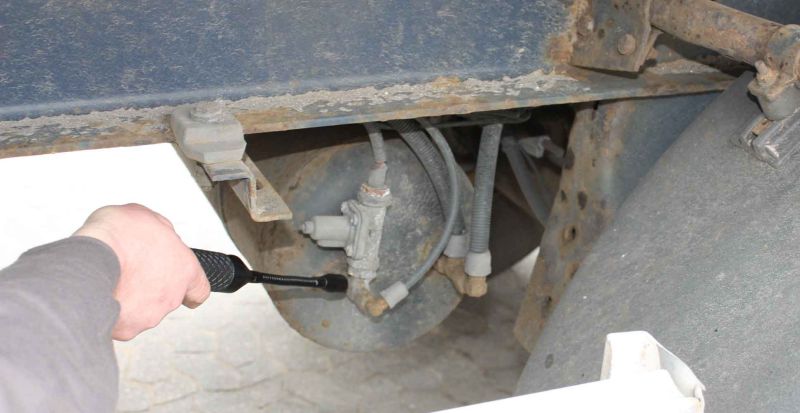

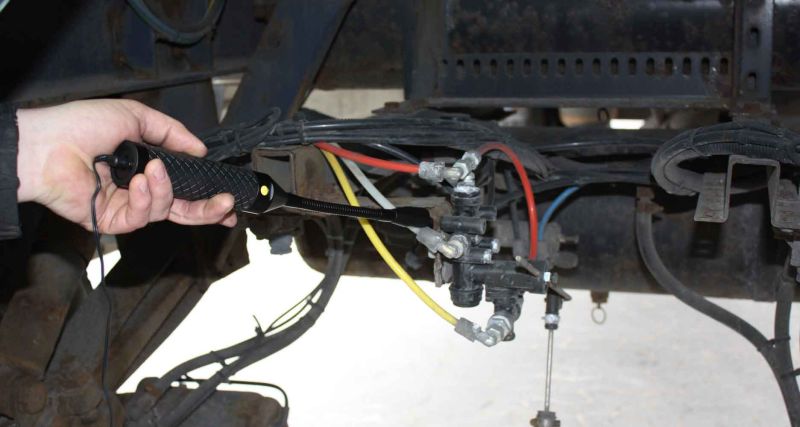

When detecting leaks in the brake system Leakage Detector easily finds the leaks around the pressure vessel, pressure hoses, brake and distributor valves as well as the brake membranes.
