Upright, Bench & Dual Bench Torque Testers

  • Accuracy - ±1% of the reading from 20% of full scale to full scale.
  • Large 4½" dial for easy torque reading.
  • Single Scale and Dual Scale Dials Available using the following scales. lb.ft., lb.in. oz.in., Nm & Kgm.
  • Memory Pointer Feature - When testing dial type torque wrenches, this is the only way to go. The torque reading is held on the memory pointer until reset or a higher value is achived.
  • Loading Device - allows for accurate loading of torque wrench being tested.
  • Certification - All ANU, ANB & ANBD series testers include a certificate of calibration. Testers are certified using "ANB" test bars and class F test weights that are both traceable to NIST.
  • All testers are certified using our exclusive weight substitution process.
  • Meets or Exceeds the Following Specifications:
    GGG-W-686C and ANSI B107.14M
  • Adaptors - All nessesary square drive adaptors are included as required per each torque tester.
  • Power Requirements - None
Model Sq.Dr. Dial Capacity Dial Increments

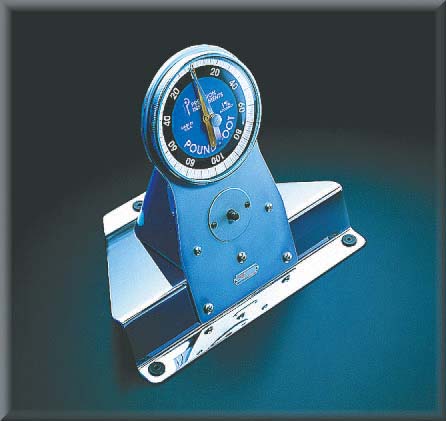

Upright Bench Torque Testers
ANU1F15CHZ¼0-15 lb.in.0.125 lb.in.
0-240 oz.in.2 oz.in.
ANU1F30H¼0-30 lb.in.0.25 lb.in.
ANU1F75H¼0-75 lb.in.0.5 lb.in.
ANU1F100CZN¼0-.7 N•m0.01 N•m
0-100 oz.in.1 oz.in.
ANU1F240CZN¼0-1.7 N•m0.025 N•m
0-240 oz.in.4 oz.in.
ANU1F30CHN¼0-3.4 N•m0.05 N•m
0-30 lb.in.0.5 lb.in.
ANU1F75CHN¼0-8.4 N•m0.1 N•m
0-75 lb.in.1 lb.in.
ANU1F30CHK¼0-34 Kg•cm1 Kg•cm
0-30 lb.in.1 lb.in.
ANU2F150H⅜0-150 lb.in.1 lb.in.
ANU2F200H⅜0-200 lb.in.1 lb.in.
ANU2F300H⅜0-300 lb.in.2 lb.in.
ANU2F600H⅜0-600 lb.in.5 lb.in.
ANU2F150CHN⅜0-16.8 N•m0.1 N•m
0-150 lb.in.1 lb.in.
ANU2F200CHN⅜0-22 N•m0.5 N•m
0-200 lb.in.2 lb.in.
ANU2F300CHN⅜0-34 N•m0.5 N•m
0-300 lb.in.5 lb.in.
ANU2F50CFN⅜0-66 N•m1 N•m
0-50 lb.ft.0.5 lb.ft.
ANU2F150CHK⅜0-175 Kg•cm5 Kg•cm
0-150 lb.in.5 lb.in.
ANU2F200CHK⅜0-225 Kg•cm1 Kg•cm
0-200 lb.in.2 lb.in.
ANU2F300CHK⅜0-340 Kg•cm10 Kg•cm
0-300 lb.in.10 lb.in.
ANU2F600CHK⅜0-7 Kg•m0.2 Kg•m
0-600 lb.in.20 lb.in.

Note: ANU1 series upright testers include the ANQN139, ¼F×¼F adaptor.
Note: ANU2 series upright testers include the ANQN260, ⅜F×⅜F adaptor and the ANQN260, ⅜M×¼F adaptor.

ModelSq. Dr.RangeSteps ofAdaptors
ANQN130ANQN131ANQN132ANQN133ANQN134ANQN144ANQN145ANQN379
¼F×½M⅜F×½M½F×½F¾F×¾F½F×¾M½F×1M¾F×1M1F×1F

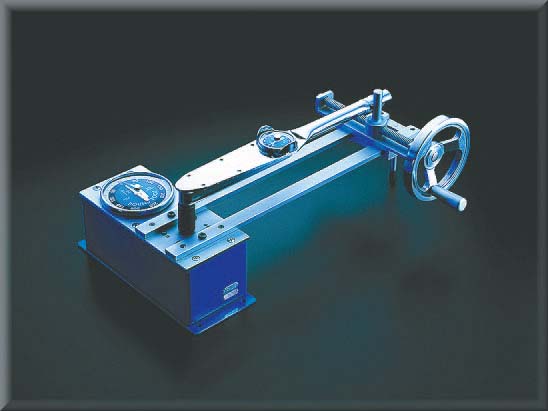

Bench Torque Testers
ANB3F200CHZ½0-200 lb.in.1 lb.in.✓✓✓
0-3200 oz.in.25 oz.in.
ANB3F300H½0-300 lb.in.2 lb.in.✓✓✓
ANB3F600H½0-600 lb.in.5 lb.in.✓✓✓
ANB3F800H½0-800 lb.in.5 lb.in.✓✓✓
ANB3F1200H½0-1200 lb.in.5 lb.in.✓✓
ANB4F3600H¾0-3600 lb.in.20 lb.in.✓✓
ANB3F200F½0-200 lb.ft.1 lb.ft.✓✓
ANB4F300F¾0-300 lb.ft.2 lb.ft.✓✓
ANB4F500F¾0-500 lb.ft.5 lb.ft.✓✓
ANB4F600F¾0-600 lb.ft.5 lb.ft.✓✓
ANB5F1000F10-1000 lb.ft.10 lb.ft.✓✓✓
ANB3F66N½0-66 N•m.5 N•m✓✓✓
ANB4F500N¾0-500 N•m5 N•m✓✓
ANB4F800N¾0-800 N•m10 N•m✓✓
ANB3F200CHN½0-22 N•m.5 N•m✓✓✓
0-200 lb.in.2 lb.in.
ANB3F300CHN½0-34 N•m.5 N•m✓✓✓
0-300 lb.in.5 lb.in.
ANB3F800CHN½0-90 N•m1 N•m✓✓✓
0-800 lb.in.5 lb.in.
ANB3F1000CHN½0-110 N•m1 N•m✓✓✓
0-1000 lb.in.10 lb.in.
ANB3F1200CHN½0-132 N•m2 N•m✓
0-1200 lb.in.5 lb.in.
ANB3F50CFN½0-66 N•m1 N•m✓✓✓
0-50 lb.ft..5 lb.ft.
ANB3F200CFN½0-270 N•m5 N•m✓✓
0-200 lb.ft.2 lb.ft.
ANB4F300CFN¾0-400 N•m5 N•m✓✓
0-300 lb.ft.5 lb.ft.
ANB4F350CFN¾0-480 N•m5 N•m✓✓
0-350 lb.ft.5 lb.ft.
ANB4F500CFN¾0-680 N•m5 N•m✓✓
0-500 lb.ft.5 lb.ft.
ANB4F600CFN¾0-800 N•m10 N•m✓✓
0-600 lb.ft.10 lb.ft.
ANB5F1000CFN10-1350 N•m10 N•m✓✓✓
0-1000 lb.ft.10 lb.ft.
ANB3F200CHK½0-225 Kg•cm1 Kg•cm✓✓✓
0-200 lb.in.2 lb.in.
ANB3F300CHK½0-340 Kg•cm10 Kg•cm✓✓✓
0-300 lb.in.10lb.in.
ANB3F600CHM½0-7 Kg•m.2 Kg•m✓✓✓
0-600 lb.in.20 lb.in.
ANB3F1800CHM½0-20.8 Kg•m.2 Kg•m✓✓
0-1800 lb.in.10 lb.in.
ANB3F200CFM½0-27 Kg•m.25 Kg•m✓✓
0-200 lb.ft.2 lb.ft.
ANB5F1000CFM10-138 Kg•m1 Kg•m✓✓✓
0-1000 lb.ft.10 lb.ft.
Dual Bench Torque Testers
ANBD116½" (Right)0-200 lb.ft.1 lb.ft.✓✓✓
½" (Left)0-200 lb.in.1 lb.in.
ANBD101-25½" (Right)0-1200 lb.in.5 lb.in.✓✓✓
½" (Left)0-300 lb.in.2 lb.in.
ANBD216½" (Right)0-200 lb.ft.1 lb.ft.✓✓✓
½" (Left)0-200 lb.in.1 lb.in.
ANBD225½" (Right)0-200 lb.ft.1 lb.ft.✓✓✓
½" (Left)0-300 lb.in.2 lb.in.
ANBD200-50½" (Right)0-200 lb.ft.1 lb.ft.✓✓✓
½" (Left)0-600 lb.in.5 lb.in.
ANBD316¾" (Right)0-300 lb.ft.2 lb.ft.✓✓✓✓✓
½" (Left)0-200 lb.in.1 lb.in.
ANBD616¾" (Right)0-600 lb.ft.5 lb.ft.✓✓✓✓✓
½" (Left)0-200 lb.in.1 lb.in.
ANBD650¾" (Right)0-600 lb.ft.5 lb.ft.✓✓✓✓✓
½" (Left)0-600 lb.in.5 lb.in.
ANBD10501" (Right)0-1000 lb.ft.10 lb.ft.✓✓✓✓✓✓
½" (Left)0-600 lb.in.5 lb.in.
ANBD216CM½" (Right)0-27 Kg•m.25 Kg•m✓✓✓
0-200 lb.ft.2 lb.ft.
½" (Left)0-225 Kg•cm1 Kg•cm
0-200 lb.in.2 lb.in.
ANBD650CM¾" (Right)0-80 Kg•m1 Kg•m✓✓✓✓✓
0-600 lb.ft.10 lb.ft.
½" (Left)0-7 Kg•m.2 Kg•m
0-600 lb.in.20 lb.in.
ANBD1050CM1" (Right)0-138 Kg•m1 Kg•m✓✓✓✓✓✓
0-1000 lb.ft.10 lb.ft.
½" (Left)0-7 Kg•m.2 Kg•m
0-600 lb.in.20 lb.in.
ANBD216CN½" (Right)0-270 N•m5 N•m✓✓✓
0-200 lb.ft.2 lb.ft.
½" (Left)0-22 N•m.5 N•m
0-200 lb.in.2 lb.in.
ANBD650CN¾" (Right)0-800 N•m10 N•m✓✓✓✓✓
0-600 lb.ft.10 lb.ft.
½" (Left)0-66 N•m1 N•m
0-50 lb.ft..5 lb.ft.
ANBD1050CN1" (Right)0-1350 N•m10 N•m✓✓✓✓✓✓✓
0-1000 lb.ft.10 lb.ft.
½" (Left)0-66 N•m1 N•m
0-50 lb.ft..5 lb.ft.
