DIGITAL ANEMOMETER

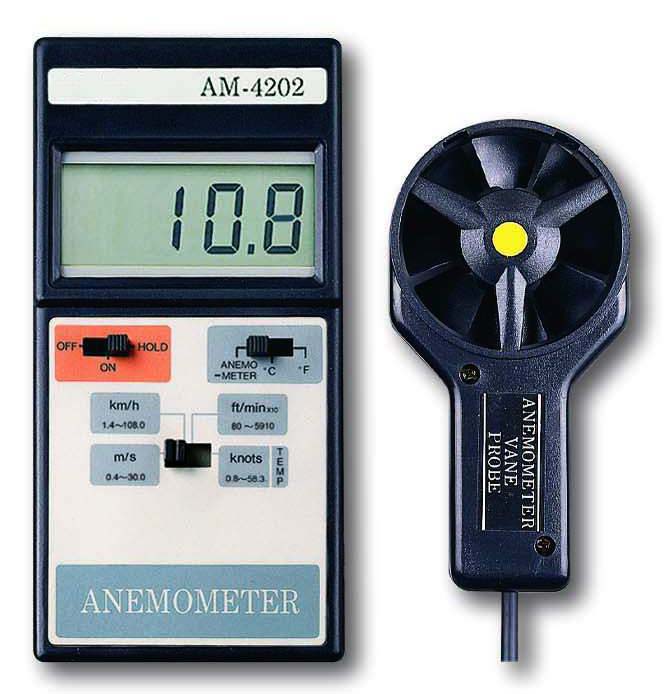

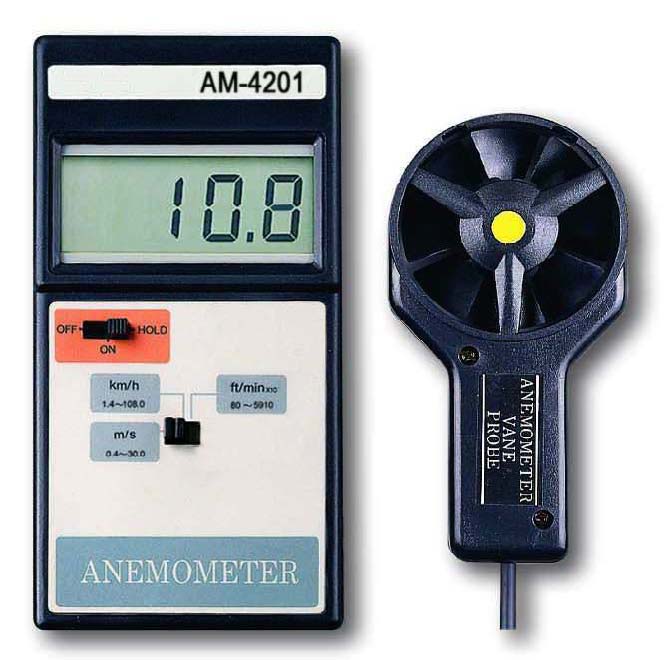

Model : AM-4201 / AM-4202 (with Temp. Measurement)
ISO-9001, CE, IEC1010
FEATURES
- The portable anemometer provides fast
accurate readings with digital
readability and the convenience of
a remote sensor separately.
- Multi-functions for air flow
measurement:
m/s, km/h, ft/min, knots.
- Low-friction ball-bearing design
resulting in accuracy at both high
and low velocities.
- Conventional twisted vane arms,
always a source of unreliability have
been eliminated.
- DATA HOLD.
- Compact housing cabinate.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature...etc.
GENERAL SPECIFICATIONS
Display
18mm (0.7") LCD (Liquid Crystal Display), 3 1/2 digits.
Temp. Sensor (AM4202 only)
Naked-bead type kthermocouple probe.
Measurement
m/s (meters per second), km/h (kilometers per hour), ft/min (feet/per minute), knots (nautical miles per hour), Temp.- ℃,℉ (AM-4202 only). Data hold.
Operating Temp.
0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
Operating Humidity
Less than 80 % RH.
Air Velocity Sensor Structure
Conventional twisted vane arms and low-friction ball-bearing design.
Power Supply
DC 9V 006P, MN1604(PP3) battery (Heavy Duty Type) or equivalent.
Power Consumption
Approx. DC 9 mA.
Dimension
Instrument :
168 x 80 x 35mm
(6.6 x 3.2 x 1.2 inch)
Sensor Head :
Round, 72 mm Dia.
Standard Accessories
| Instruction Manual | 1 PC. |
| Sensor probe | 1 PC. |
| Carrying case | 1 PC. |
ELECTRICAL SPECIFICATION ( 23 ± 5 ℃ )
| Measurement | Range | Resolution | Accuracy |
|---|
| Air velocity |
|---|
| m/s | 0.4-30.0 m/s | 0.1 m/s | ± (2 % + 1 d) |
| km/h | 1.4-108.0 km/h | 0.1 km/h | ± (2 % + 3 d) |
| ft/min. | 80-5910 ft/min. | 10 ft/min. | ± (2 % + 2 d) |
| knots | 0.8-58.3 knots | 0.1 knots | ± (2 % + 2 d) |
| Temperature (AM-4202) |
|---|
| ℃ | 0 ℃ to 60 ℃ | 0.1 ℃ | ±0.8 ℃ |
| ℉ | 32 ℉ to 140 ℉ | 0.1 ℉ | ±1.5 ℉ |
* Appearance and specifications listed in this brochure are subject to change without notice.
|
