| TORQUE TOOLS > NORBAR TOOLS > HAND TORQUE MULTIPLIERS > STANDARD SERIES TO 3400 N.M |
- True torque multiplication guaranteed better than ±4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.

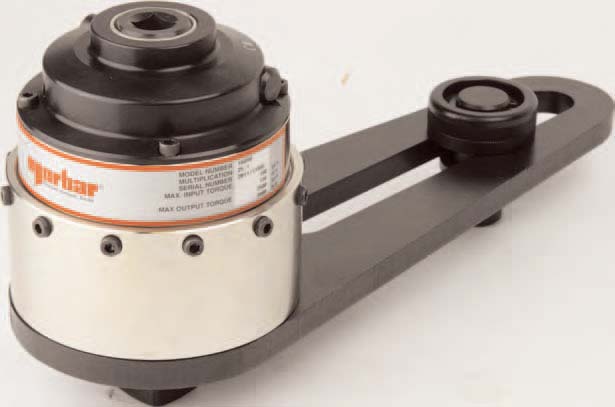

- Anti Wind-Up Ratchet available on models of 25:1 ratio.
- Other reaction styles can be designed to suit specific applications.
- Electronic torque transducers can be fitted for precise torque monitoring.

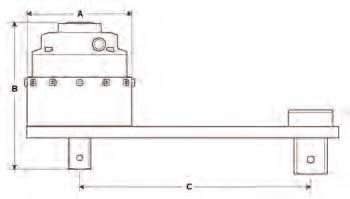

| Model No. | Part No. | Range | Ratio | Input Square | Output Square | A | B | C | C Max | Tool Weight | Reaction Weight |
|---|
| N.m | lbf.ft | in | mm | kg |
|---|
| 1 | 16010 | 1700 | 1250 | 5:1 | 1/2 | 3/4 | 108 | 106 | 83 | 217 | 3 | 2.2 |
| 2/5 | 16012 | 1700 | 1250 | 5:1 | 3/4 | 1 | 108 | 126 | 83 | 217 | 3 | 2.2 |
| 2/25* | 16089 | 1700 | 1250 | 25:1 | 1/2 | 1 | 108 | 141.5 | 83 | 217 | 5.6 | 2.2 |
| 5/5 | 16014 | 3400 | 2500 | 5:1 | 3/4 | 1 | 119 | 142.1 | 86 | 264 | 4.7 | 2.5 |
| 5/25* | 16090 | 3400 | 2500 | 25:1 | 1/2 | 1 | 119 | 167.6 | 86 | 264 | 7.5 | 2.5 |
| 6/5 | 16016 | 3400 | 2500 | 5:1 | 3/4 | 11/2 | 119 | 144.7 | 86 | 264 | 4.7 | 2.5 |
| 6/25* | 16092 | 3400 | 2500 | 25:1 | 1/2 | 11/2 | 119 | 172 | 86 | 264 | 7.5 | 2.5 |
* Fitted with AWUR
|
