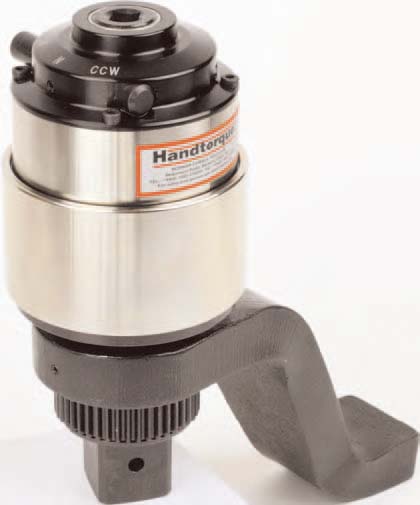

Handtorque models HT30, 45 and 60 have all the features of the Standard Series, but have a higher torque output for a given gearbox diameter.

  • Reduced diameter allows better access, particularly on pipe flanges.
  • Reaction taken from high strength spline.
  • Reaction foot can slide on the spline to allow for sockets of various lengths (except HT45).
  • Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
  • HT45 has integral angle protractor for easy torque and angle tightening.

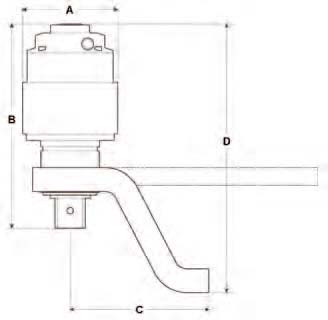

Model No.Part No.RangeRatioInput SquareOutput SquareABCD MinD MaxTool WeightReaction Weight
N.mlbf.ftinmmkg
30/518003300022005:13/41108192140224.2252.45.02
30/15*180043000220015:11/21108210.9140243.2271.47.02
30/25*180063000220025:11/21108210.9140243.2241.47.02
45/26*180374500330026:11/21108#228174N/A3228.74
60/25*180086000440025:11/211/2119256174311.533710.64
60/125*1801260004400125:11/211/2119284.7174340.536612.14
* Fitted with AWUR
# Maximum width 140mm
