TORQUE TOOLS > NORBAR TOOLS > HAND TORQUE MULTIPLIERS > HT3 AND HT4 SERIES

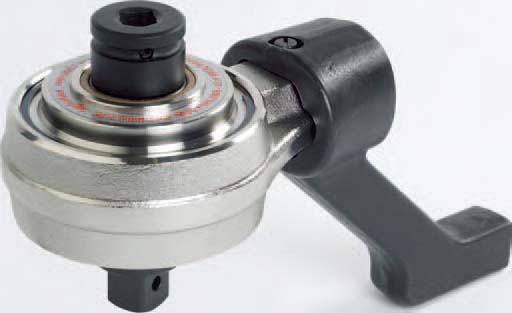

HT3 Torque Multiplier
Model
Part No.
Range
Ratio
Input Square
Output Square
A
B
C
D
Tool Weight
Reaction
Weight
N.m
Ibf.ft
in
mm
mm
mm
mm
Kg
Kg
HT3
1300 N.m
Version Kit
17220
1300
960
5:1
1/2
3/4
108
126
210
180
3.8
1.3
HT3
2700 N.m
Version Kit
 17221 2700 2000 5:1 3/4 I 108 128 210 186 3.8 1.3

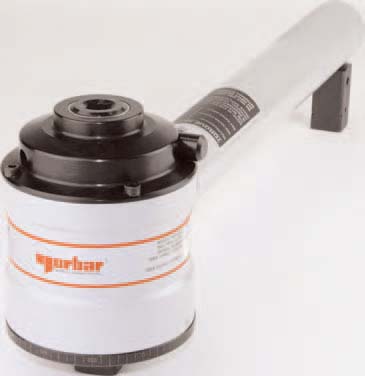

HT4 Torque Multiplier
Model
Part No.
Range
Ratio
Input Square
Output Square
A
B
C
Tool Weight
Reaction
Weight
N.m
Ibf.ft
in
mm
mm
mm
Kg
Kg
HT4/15.5
17022
3000
2200
15.5:1
1/2
I
108
156
450
6.1
1.9
HT4/26
 17021 4500 3300 26.1 1/2 I 108 173 450 7.0 1.9
