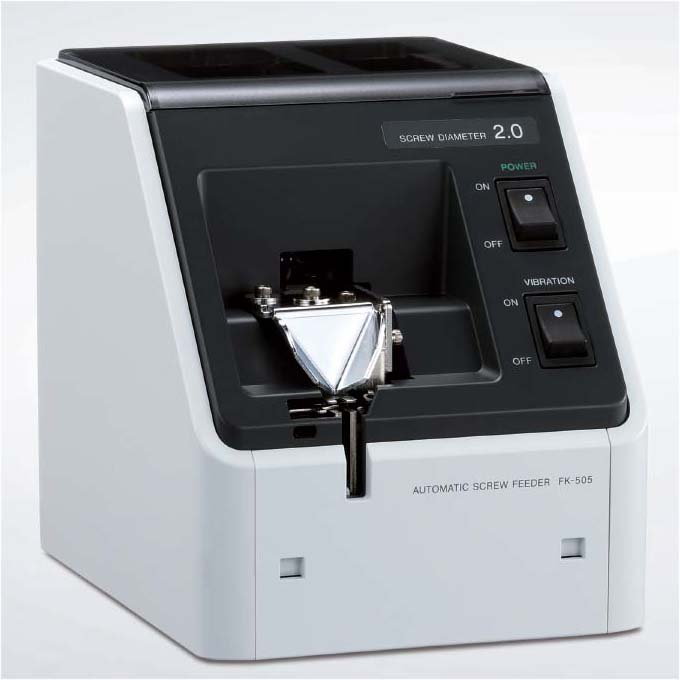

FK-505 Series
(Fixed rail width)
- Supporting many screw and rail variations
- Applicable screw head shapes
FK-505: standard screw
FK-505F: flat head screw
FK-505RS: robot-compatible
FK-505 are based on RoHS. All materials are applying to green partner materials.
|
Fixed rail width type
Model |
Screw
Nominal
diameter |
Screw length(mm) |
Minimum length(mm) |
Maximum length |
Single screw |
Screw with spring washer |
Screw with spring +flat washer |
FK-505
Standard screw |
FK-514 |
M1.4 |
1.4 |
- |
- |
18.0 |
FK-517 |
M1.7 |
1.6 |
- |
- |
FK-520 |
M2.0 |
1.8 |
3.0 |
5.0 |
FK-523 |
M2.3 |
2.5 |
4.0 |
5.0 |
FK-526 |
M2.6 |
2.8 |
4.0 |
6.0 |
FK-530 |
M3.0 |
3.0 |
4.0 |
6.0 |
FK-535 |
M3.5 |
3.5 |
6.8 |
8.0 |
FK-540 |
M4.0 |
4.0 |
6.8 |
8.0 |
FK-550 |
M5.0 |
5.0 |
8.0 |
10.0 |
FK-505F
Flat screw only |
FK-514F |
M1.4 |
1.4 |
- |
- |
18.0 |
FK-517F |
M1.7 |
1.6 |
- |
- |
FK-520F |
M2.0 |
1.8 |
- |
- |
FK-523F |
M2.3 |
2.5 |
- |
- |
FK-526F |
M2.6 |
2.8 |
- |
- |
FK-530F |
M3.0 |
3.0 |
- |
- |
FK-535F |
M3.5 |
3.5 |
- |
- |
FK-540F |
M4.0 |
4.0 |
- |
- |
FK-550F |
M5.0 |
5.0 |
- |
- |
FK-505RS
Automatic
only |
FK-514RS |
M1.4 |
1.4 |
- |
- |
18.0 |
FK-517RS |
M1.7 |
1.6 |
- |
- |
FK-520RS |
M2.0 |
1.8 |
3.0 |
5.0 |
FK-523RS |
M2.3 |
2.5 |
4.0 |
5.0 |
FK-526RS |
M2.6 |
2.8 |
4.0 |
6.0 |
FK-530RS |
M3.0 |
3.0 |
4.0 |
6.0 |
FK-535RS |
M3.5 |
3.5 |
6.8 |
8.0 |
FK-540RS |
M4.0 |
4.0 |
6.8 |
8.0 |
FK-550RS |
M5.0 |
5.0 |
8.0 |
10.0 |

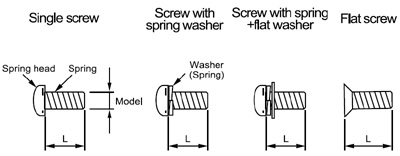

Available screw model
Model |
9 rail variations |
Shape of screw |
M type screw, Tapping screw |
Shape of screw nails
(+ shaped screw top) |
JCIS: 1,2,3, and pan-head
JIS: pan-head, button, truss, round, flat, WH, w/t spring washer, w/t spring washer and flat
*FK-505FL pan-head only |
Material |
Ferrum, or material attaching to magnet |
Caution: Please note no correspondence to screw head thickness 0.5mm or less, special screw such as Nairocc, and the screw other than the above-mentioned.
Specifications
Input Voltage |
DC12V 200mA |
AC adaptor (MPA-AC1) |
AC100-240V 15VA 50/60Hz
AC capable (accessory): for 100V, type A |
DC plug |
EIAJ Type |
Outside dimensions |
120(W)x155(D)x138(H)mm |
Mass (Main unit only) |
FK-505/505F 1.1Kg
FK-505RS 1.15Kg |
Continuous screw supply speed |
Applox. 1.5 sec per one screw (+PM3,0x8)
|
Screw transfer method |
Inclined rail type |
Working environment |
+10~+30℃(no condensation), D12 |
Storage temperature |
-10~+50℃(no condensation) |
Noise level |
66dB |
Pollution level |
Level 2 |
Operating Environment |
Indoor use only |
|

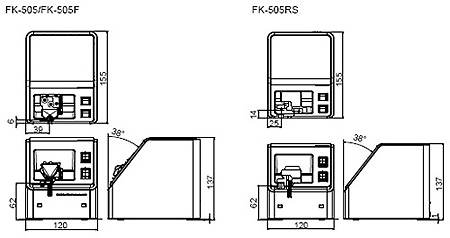

Nejicco SAS-505 Dimension
|
| |
|
| |
The products shown above are only a small part
of series,
please contact us for
your enquiry. |
| |
