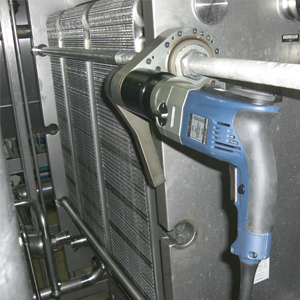

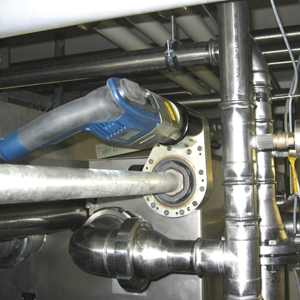

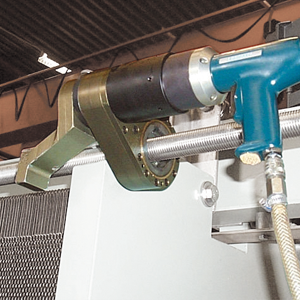

The LÖSOMAT Side Power Wrenches make it child's play to secure and dismantle plate heat exchangers. The slim, light-weight design allows access to the most confined spaces without any support problems.

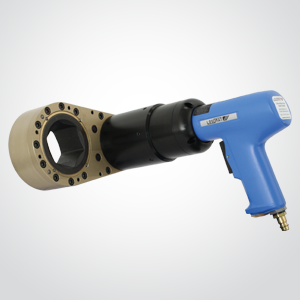

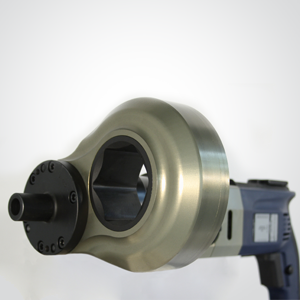

The LÖSOMAT Side Power Wrench is available with electric, pneumatic and cordless power systems.

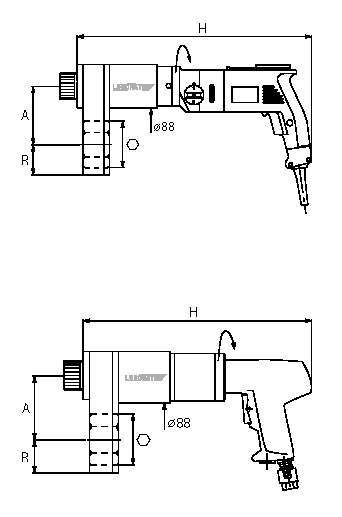

Technical Data
Type
~ N.m
~ lbf.ft
A/R
max*1
max*1
mm
mm
LPS-1/60
3000
2200
60
110/53
LPS-1/80
3600
2650
80
120/75
LPS-1/95
4800
3500
95
135/95
LES-16/60
3000
2200
60
110/53
LES-16/80
3600
2650
80
120/75
LES-16/95
4800
3500
95
135/95
LES-05/55
850
620
55
86/75
LES-05/60
850
620
60
86/75
LES-09/55
1600
1180
55
86/75
LES-09/60
1600
1180
60
86/75
*1 LES series: Breakaway torque in 1st gear. LPS series: Breakaway torque at 7 bar
