| LÖSOMAT > RAILWAY TORQUE WRENCH |
|
|
RAILWAY TORQUE WRENCH (up to 1.100 Nm)
Precise torque bolting and drilling
The LDB is a new railway torque wrench for track construction which is developed by LÖSOMAT in cooperation with the German Deutsche Bahn.
The LDB is a battery operated tool with display. On the display the operator can choose between the different rail systems he wants to bolt.
| Technical Data | RAILWAY TORQUE WRENCH |
|---|
| Torque range | 150 - 1.000 Nm |
| Idle-speed max. | ca. 160 U/min |
| Engine power max. | 16 KW |
| Square drive | 3/4" (DIN 3120) |
| Weight | 17.2 kg |
| Dimension (LxBxH) | 474 x 130 x 602 mm |
| Protection insulation | IP54 (DIN 40050) |
| Noise emissions | < 80 dB (A) (continuous sound pressure level in accordance with DIN 45635) |
| Display | 2,2" colour display with protection screen |
| Control | Two push buttons with scroll wheel |
Innovative. Lightweight.
- Lightweight & compact for 1-man operation at just 17.2 kg
- Screwing is horizontal and vertical possible
(variable handles)
- No exhaust and emission with 0.0g-CO2-footprint
- For all types of rail track systems
- High power for maximum flexibility with 16 kW (22 HP)
- High bolting precision
- Reliably prevents concrete sleepers from being damaged
- Wide range of accessories
- Logs all bolt connections (LB.TRACK optional)

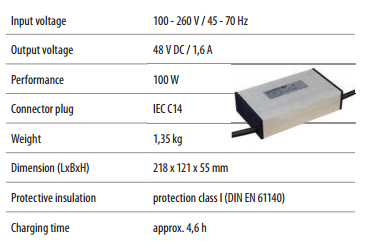

Charger with mains cable:

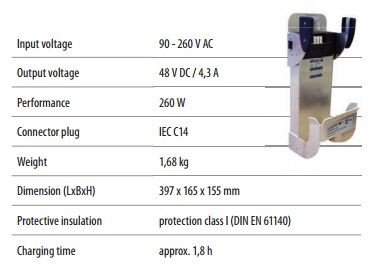

Quick charger:

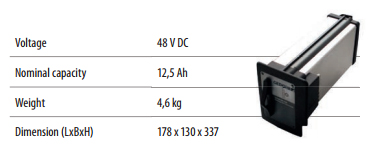

Li-Ion phosphate-based battery:
|
The products shown above are only a small part of series,
please contact us for your enquiry. |
| |
