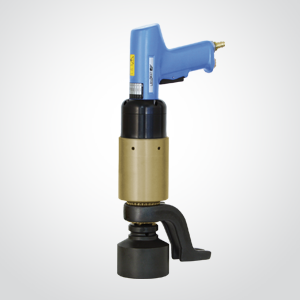

Pneumatic Torque Wrench 100 - 13.000 N.m
Rugged, ligptweight, perfect

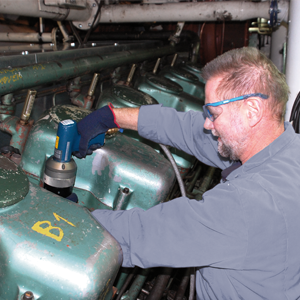

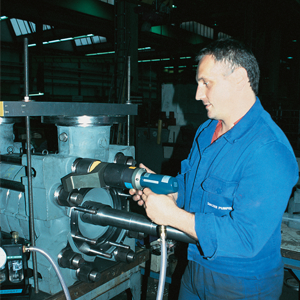

The Pneumatic Torque Wrench is an additional alternative in heavy-duty torque bolting technology.

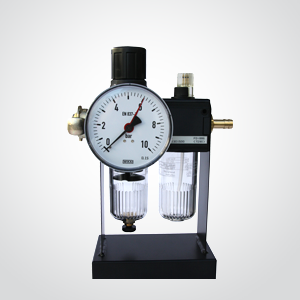

In conjunction with the LÖSOMAT air control unit, this torque wrench produces continously high performance and precision in bolting applications.

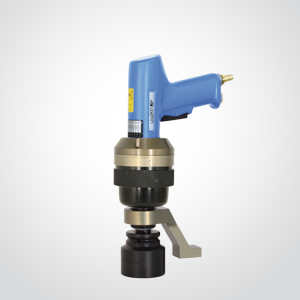

X-Series for higher speed
The LPK-X range has a 2-speed planetary gear system. This means that the operator is able to select either a rapid or a torque speed. The rapid speed tightens the bolt until the joining moment at a speed of up to 300 rpm. After this, the user can easily switch over into the torque speed, which tightens the screw at the exact torque.
Product supplied with individual LÖSOMAT calibration certificate.
Technical Data
| Type | N.m | lbf.ft | ■ | ⌀D |
|---|
| min*1/max*2 | min*1/max*2 | mm |
|---|
| LPK-05 | 80-450 | 60-330 | ¾" | 80 |
| LPK-09 | 200-900 | 150-670 | ¾" | 80 |
| LPK-16 | 300-1600 | 220-1180 | 1" | 88 |
| LPK-22 | 500-2200 | 370-1620 | 1" | 88 |
| LPK-32 | 800-3200 | 590-2360 | 1" | 88 |
| LPK-40 | 850-4200 | 620-3100 | 1" | 88 |
| LPK-60 | 1200-6000 | 880-4400 | 1½" | 102 |
| LPK-70 | 1500-7000 | 1110-5160 | 1½" | 128 |
| LPK-95 | 2000-9500 | 1470-7000 | 1½" | 138 |
| LPK-120 | 2500-12800 | 1840-9440 | 1½" | 174 |
| LPK-05 X | 80-450 | 60-330 | ¾" | 80 |
| LPK-09 X | 200-900 | 150-670 | ¾" | 80 |
| LPK-16 X | 300-1600 | 220-1180 | 1" | 88 |
| LPK-22 X | 500-2200 | 370-1620 | 1" | 88 |
| LPK-32 X | 800-3200 | 590-2360 | 1" | 88 |
| LPK-40 X | 850-4200 | 620-3100 | 1½" | 88 |
*1 Lowest torque in 2nd gear
*2 Maximum torque in 1st gear
|
