PRODUCT INFORMATION

• Short wave infrared vehicle baking equipment with 3 pcs 1000W/525mm prevent dazzling tubes from the UK.
• The working time is 7000 hours with high heating efficiency.
• The post is made of aluminium alloy, seamless steel tube base and high quality frame.
• The lamp holder is made of mirror finished stainless steel; Gather heat and dissipate heat intensively.
• Digital program controlled.
• Installed with distance and temperature control functions , paint quality is guaranteed.
• 2 heating methods: Pulse heat, Full power heat.
• The lamp can operate separately.
• With professional pneumatic lift, position of the lamps can be adjusted freely. Also, they can turn 330° in 3 directions.
• Whole process is automatic, while auto alarm prompt once the work is finished. 4 working models can be set according to different baking time or different paintings.
• Automatic alarm prompt function works when the temperature or distance are out of the set up values. It also functions when the task is finished.

TECHNICAL DATA

• Model: GP-369AT
• Power Supply: 1PH 220V±20V 50Hz/60Hz
• Current: 9A/2PH
• Power: 6 x 1000 W
• Baking Area: 2000 x 1200 mm
• Baking Distance: 400-600mm
• Baking Temperature: 60-100℃
• Primer: 3-5 min
• The First Putty: 3-6 min
• The Second Putty: 5-8 min
• Coating Time: 10-15 min
• Varnish Time: 10-15 min

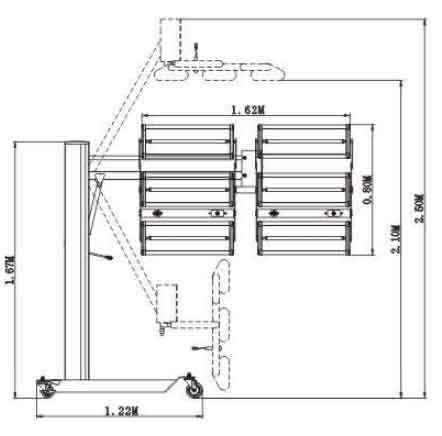

• Lamp Height: 180-2500mm
• Distance range: 25-200cm
• Temperature range: 0-250℃
• Size: 1700 x 1120 x 400 mm
• Weight: 103 kg
