PRODUCT INFORMATION

• 350mm quartz halogen short wave infrared tube, the lamp holder reflector is made of mirror finished stainless steel, averagely gather heat, concentrated heat dissipation. Both sides of the cover are cast with aluminium alloy. Sophisticatedly made.
• Controlled by electric timer, heating time can freely set from 0-60minutes.
• There is an automatic alarm when work is done.
• Universal turning wheels enhance the flexibility of the heater and brake caster helps fix the position of the equipment.
• Able to bake putty, primer, finish coat, varnish and partial filling paint.

TECHNICAL DATA

• Model: GP-222
• Power Supply: 1PH 220V±20V 50Hz/60Hz
• Current: 9A
• Power: 2 x 1000 W
• Baking Area: 600 x 800 mm
• Baking Distance: 400-600mm
• Baking Temperature: 60-100℃
• Primer: 3-5 min
• The First Putty: 4-7 min
• The Second Putty: 6-9 min
• Coating Time: 11-16 min
• Varnish Time: 11-16 min

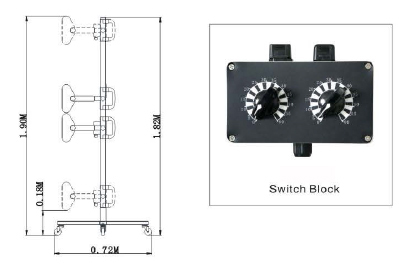

• Lamp Height: 300-1900mm
• Size: 670 x 580 x 220 mm
• Weight: 20 kg
