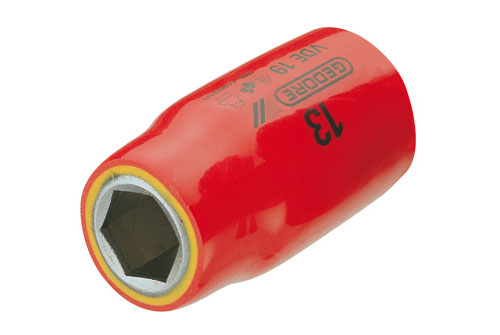

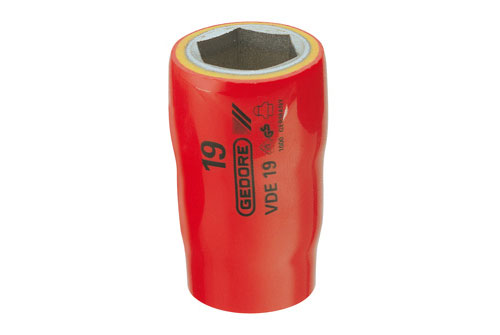

VDE 19 VDE Socket 1/2"
- Hexagon socket wrench, hand-operated
- With square drive according to DIN 3120 - C 12.5, ISO 1174
- GEDORE vanadium steel 31CrV3
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
- 10 - 12 mm insulation overhang must be added to the lengths stated
- Sizes 27, 30 and 32: diameter d1 is not standardised
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6122510 | VDE 19 10 | 70 g | 54,0 mm |
| 6122780 | VDE 19 11 | 67 g | 54,0 mm |
| 6122860 | VDE 19 12 | 70 g | 54,0 mm |
| 6122940 | VDE 19 13 | 69 g | 54,0 mm |
| 6123080 | VDE 19 14 | 73 g | 54,0 mm |
| 6123160 | VDE 19 15 | 88 g | 55,5 mm |
| 1439294 | VDE 19 16 | 86 g | 55,5 mm |
| 6123240 | VDE 19 17 | 84 g | 55,5 mm |
| 6123320 | VDE 19 19 | 92 g | 56,0 mm |
| 6123400 | VDE 19 22 | 121 g | 57,5 mm |
| 6123590 | VDE 19 24 | 146 g | 57,5 mm |
| 6123670 | VDE 19 27 | 174 g | 57,5 mm |
| 6123750 | VDE 19 30 | 212 g | 59,0 mm |
| 6123830 | VDE 19 32 | 250 g | 60,5 mm |

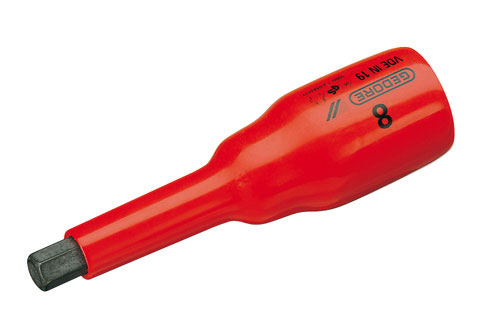

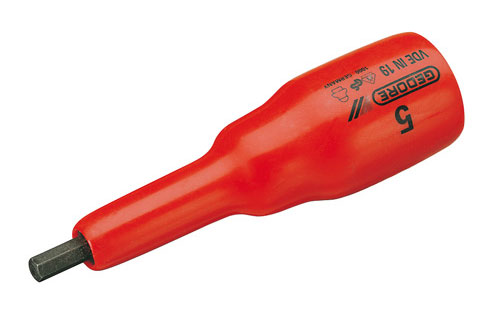

VDE IN 19 VDE Screwdriver bit socket 1/2"for in-hex screws
- With pressed-in pin
- With square drive according to DIN 3120 - C 12.5, with ball groove
- Tips GEDORE vanadium special steel
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
- Sockets can only be combined with VDE 1989 T, VDE 1991, VDE 1993 Uand VDE 4507
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6124480 | VDE IN 19 5 | 83 g | 106 mm |
| 6124560 | VDE IN 19 6 | 95 g | 106 mm |
| 6124640 | VDE IN 19 8 | 109 g | 106 mm |

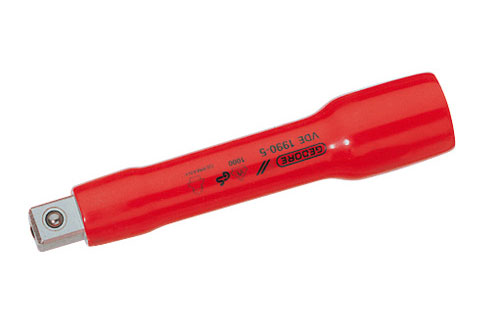

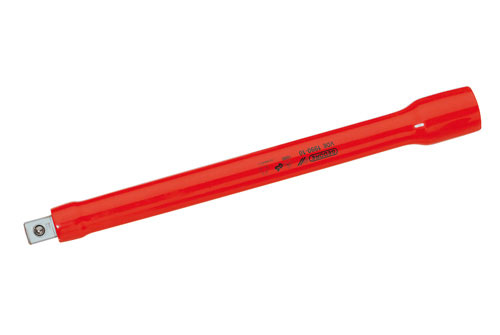

VDE 1990 VDE Extension 1/2"
- For hand-operated sockets with square drive as per DIN 3120, ISO 1174
- With lock screw for holding the socket wrenches
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
- Not suited for use with VDE IN 19
- 16 - 18 mm insulation overhang mustbe added to the lengths stated
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6124050 | VDE 1990-5 | 213 g | 125 mm |
| 6124130 | VDE 1990-10 | 411 g | 250 mm |

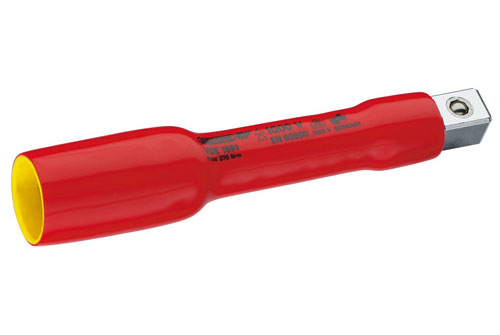

VDE 1991 VDE Extension 1/2"
- With hollow shaft, especially suitable for screwdriver bit sockets VDE IN 19
- Max. torque 370 N¡Pm
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1507516 | VDE 1991 | 204 g | 125 mm |

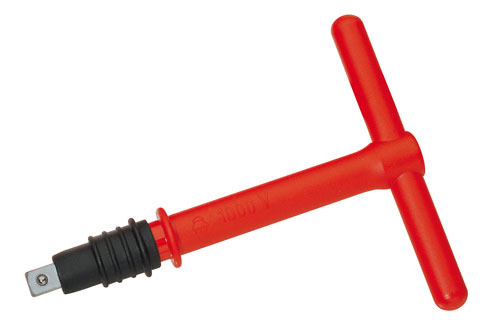

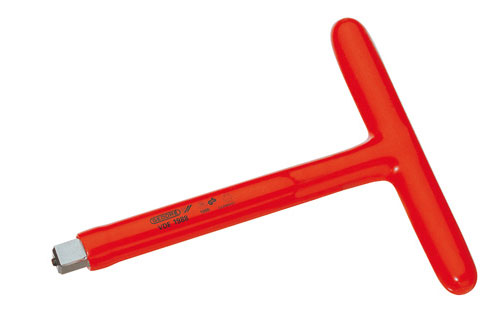

VDE 1988 - VDE 1989 T VDE T-handle for 1/2"VDE tools
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
- VDE 1988 with screw locking, not suited for use with VDE IN 19
- VDE 1989 T with pull locking
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6124210 | VDE 1988 | 455 g | 200 mm |
| 6124720 | VDE 1989 T | 355 g | 200 mm |

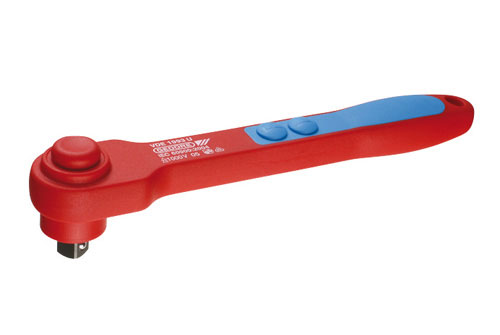

VDE 1993 U VDE Reversible ratchet 1/2"with push-button release
- Robust, with smooth action
- Sockets held absolutely securely by push-button lock with ball in the square drive
- Direction changed by 2 push-buttons, marked R and L, on the shaft
- Square drive acc. to DIN 3120 - A 12.5, ISO 1174, chrome-vanadium steel 31CrV3
- VDE insulation up to 1000V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6123910 | VDE 1993 U | 546 g | 270 mm |
|
