VDE 42 VDE Hexagon Allen key for in-hex screws
- Acc. to DIN ISO 2936
- Particularly suitable for cable branch clamping rings
- Oil-hardened
- GEDORE vanadium special steel
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 2324849 | VDE 42 3 | 20 g | 130 mm |
| 2324857 | VDE 42 4 | 25 g | 120 mm |
| 2324865 | VDE 42 5 | 45 g | 140 mm |
| 2324873 | VDE 42 6 | 60 g | 140 mm |
| 2324881 | VDE 42 8 | 110 g | 150 mm |
| 2324903 | VDE 42 10 | 230 g | 220 mm |
| 2324911 | VDE 42 12 | 350 g | 260 mm |

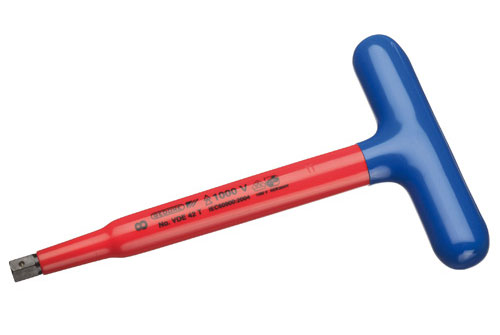

VDE 42 T VDE Hexagon Allen key with T-handle for in-hex screws
- Insulated acc. to IEC 60900:2004
- With Check-Tool insulation
- GEDORE chrome-vanadium steel 59CrV4
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 2661225 | VDE 42 T 4 | 145 g | 160 mm |
| 2661233 | VDE 42 T 5 | 250 g | 160 mm |
| 2661241 | VDE 42 T 6 | 250 g | 160 mm |
| 2661268 | VDE 42 T 8 | 260 g | 160 mm |
| 2661276 | VDE 42 T 10 | 390 g | 200 mm |
| 2661284 | VDE 42 T 11 | 400 g | 200 mm |
| 2661292 | VDE 42 T 12 | 420 g | 200 mm |
VDE 2170 VDE Screwdriver for slotted head screws
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, fully insulated blade
- Blade tip to DIN ISO 2380-1 form A
- With impact resistant handle
- Blade in chrome-vanadium steel, with black tip
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1612220 | VDE 2170 2,5 | 29 g | 155 mm |
| 1612239 | VDE 2170 3 | 33 g | 180 mm |
| 1612247 | VDE 2170 3,5 | 46 g | 190 mm |
| 1612255 | VDE 2170 4 | 49 g | 190 mm |
| 1612271 | VDE 2170 5,5 | 81 g | 225 mm |
| 1612298 | VDE 2170 6,5 | 116 g | 260 mm |
| 1612301 | VDE 2170 8 | 158 g | 195 mm |
| 1612336 | VDE 2170 10 | 188 g | 320 mm |

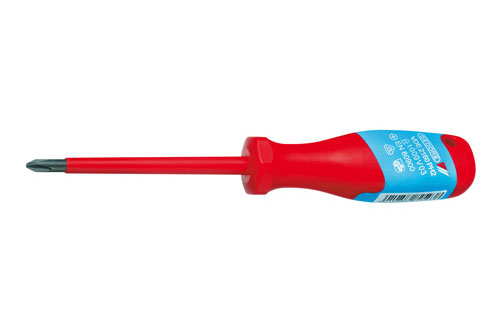

VDE 2160 PH VDE Screwdriver for cross-slotted head screws PH
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, fully insulated blade
- Blade tip to DIN ISO 8764-1 PH
- With impact-resistant handle
- Blade in chrome-vanadium steel, with black tip
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1612107 | VDE 2160 PH 0 | 30 g | 140 mm |
| 1612115 | VDE 2160 PH 1 | 68 g | 180 mm |
| 1612123 | VDE 2160 PH 2 | 101 g | 210 mm |
| 1612131 | VDE 2160 PH 3 | 168 g | 270 mm |
| 1612158 | VDE 2160 PH 4 | 249 g | 320 mm |
VDE 2160 PZ VDE Screwdriver for cross-slotted head screws PZ
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, fully insulated blade
Blade tip to DIN ISO 8764-1 PZ
With impact-resistant handle
Blade in chrome-vanadium steel, with black tip
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1612166 | VDE 2160 PZ 0 | 29 g | 140 mm |
| 1612182 | VDE 2160 PZ 1 | 68 g | 180 mm |
| 1612190 | VDE 2160 PZ 2 | 102 g | 210 mm |
| 1612204 | VDE 2160 PZ 3 | 168 g | 270 mm |
| 1612212 | VDE 2160 PZ 4 | 250 g | 320 mm |

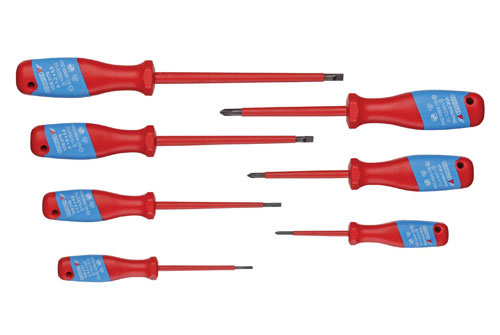

VDE 2170-2160 PH-077 VDE Screwdriver set 7 pieces
- Packed in environmentally-friendly cardboard box
For slotted and cross-slotted head screws PH
VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, fully insulated blade
With impact-resistant handle
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1616048 | VDE 2170-2160 PH-077 | 575 g | |

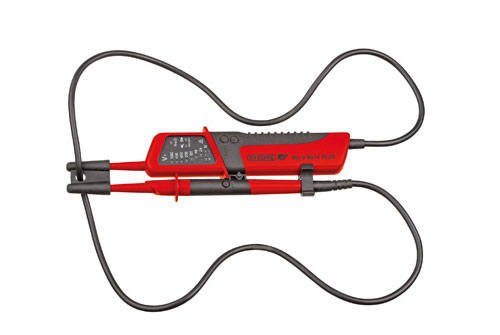

V 4614 PLUS Voltage tester 1000 V two-pole with LED display
- For 6 - 1000 V AC
Optical warning of life-threatening voltage above 35 V
Acoustic and visual continuity testing from 0 to 500 k?
Phase testing>100 V AC
Phase sequence indicator
RCD triggering by automatic load function, Is ~30 mA, ED (DT) = max. 30 sec.
Safety outlet and CEE one-hand operation
Removable 4 mm tip adaptor
Undetachable test tip protection
Protection classification IP65, dust-proof, hose-proof
Integrated LEDtorch (white)
2x batteries type AAA Micro
Automatic on/off function
CAT IV 1000 V
TUV/GS tested and approved, IEC/EN 61243-3, DIN VDE 0682 Part 401
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 2241137 | V 4614 PLUS | 270 g | |
|
