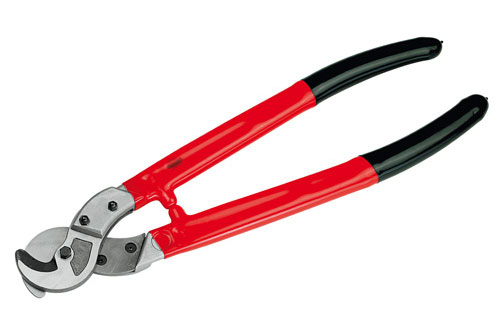

V 180 Cable shears
- Cuts cable up to 27 mm, solid material up to 200 mm2
- Suitable for use up to 1000 V
- Not certified acc. to VDE
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6430330 | V 180 23 | 2125 g | 620 mm |

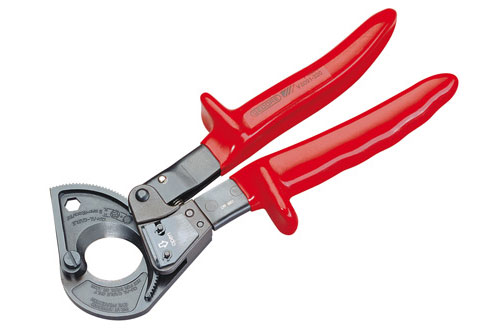

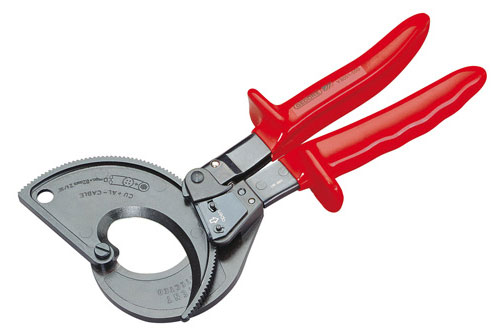

V 8091 Cable cutter
- For cutting copper and aluminium cables
- Genuine single-hand operation, with optimum transfer of force. Handles ergonomically designed for fatigue-free constant use. Little hand pressure required even at maximum loading. For step-by-step cutting with burr-free cut, may be opened in every cutting position. With locking lever.
- Tool body in high-tensile special steel
- Cutting edges and important functional parts tempered or specially hardened
- Red plastic handles insulated
- Suitable for use up to 1000 V
- Not certified acc. to VDE
- V 8091-320: single-strand cable, max. O25 mm (1"), multi-strand cable, max.O 32 mm (1.1/4")
- V 8091-500: multi-strand cable, max. O 52 mm (2.1/32")
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6725130 | V 8091-320 | 792 g | 280 mm |
| 6725210 | V 8091-500 | 999 g | 280 mm |
VDE 8094 VDE Cable shears with VDE dipped insulation
- For cutting multi-strand copper and aluminium cables up to O 20 mm
- When using first and final cuts, the diameter increases to O 25 mm
- The handle width remains within the range of ergonomic single-hand operation
- First cut: Use the front blade to cut the cable sheath
- Final cut: Place the cable in the back blade and separate the wire(s)
- Cutting edges additionally inductively hardened
- Precision ground for optimum action, new cutting-edge geometry
- Adjustable screw joint with finger protection
- Not suitable for steel wire or hard-drawn copper wire
- Special tool steel, forged, gun-metal finish
- Handles with VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6725050 | VDE 8094 | 423 g | 200 mm |

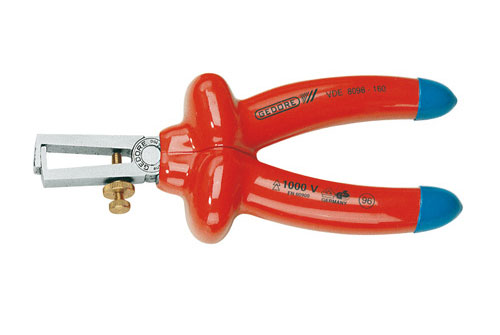

VDE 8098 VDE Stripping pliers with VDE dipped insulation
- Opening stop, spring and brass adjusting screw for wires 0.8 - 6.0 mm2
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6708980 | VDE 8098-160 | 217 g | 160 mm |

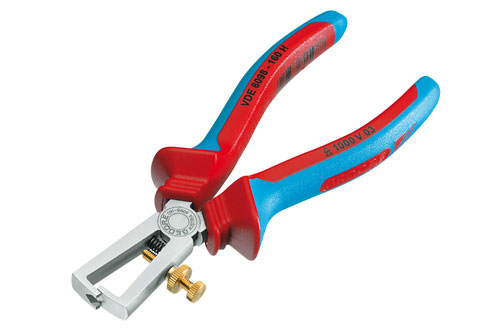

VDE 8098 H VDE Stripping pliers with VDE insulating sleeves
- Opening stop, spring and brass adjusting screw for wires 0.8 - 6.0 mm2
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552074 | VDE 8098-160 H | 204 g | 160 mm |
VDE 8099 VDE Stripping pliers STRIP-FIX with VDE dipped insulation
- Self-adjusting, for wires 0.5 - 5.0 mm2
- GEDORE special hardened and tempered steel, oil-hardened, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
- E-8099 = Pair of spare knives
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6709600 | VDE 8099-160 | 226 g | 160 mm |
| 5709580 | E-8099 | 12 g | |

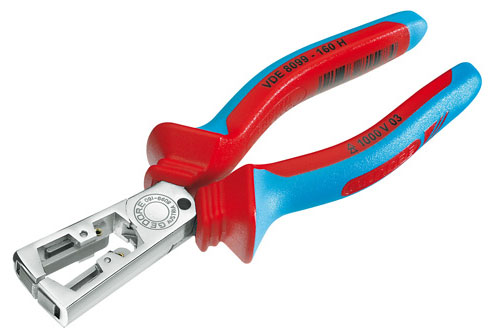

VDE 8099 H VDE Stripping pliers STRIP-FIX with VDE insulating sleeves
- Self-adjusting, for wires 0.5 - 5.0 mm2
- V-shaped cutting jaws for stripping the plastic insulation of single and multi-strand conductors
- GEDORE special hardened and tempered steel, oil-hardened, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552082 | VDE 8099-160 H | 211 g | 160 mm |

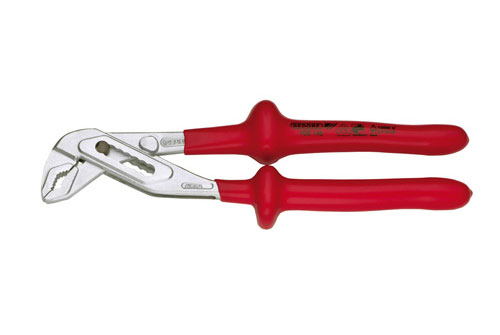

VDE 146 VDE Universal pliers 7 settings
- Gripping pliers with safety box joint and finger protection
- GEDORE special chrome-vanadium steel
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6120140 | VDE 146 10 | 485 g | 250 mm |

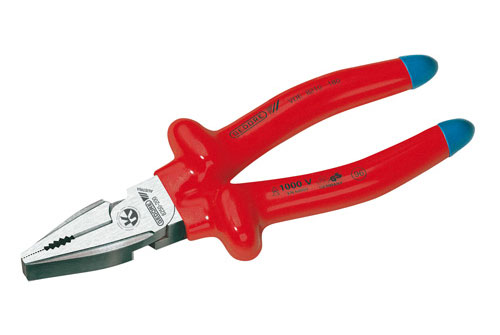

VDE 8250 VDE Heavy duty combination pliers with VDE dipped insulation
- For heavy continuous use
- Good lever action for easy cutting
- Induction-hardened precision cutting edges, hardness 62 - 64 HRC
- For flat and round material
- To cut all wire types including piano wire, 1.6 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1429582 | VDE 8250-160 | 236 g | 160 mm |
| 6720090 | VDE 8250-180 | 312 g | 180 mm |
| 6720250 | VDE 8250-200 | 365 g | 200 mm |
| 6720330 | VDE 8250-225 | 485 g | 225 mm |

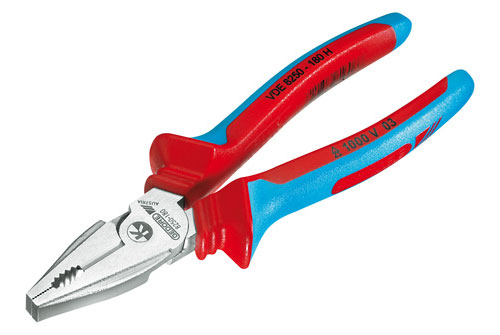

VDE 8250 H VDE Heavy duty combination pliers with VDE insulating sleeves
- For heavy continuous use
- Good lever action for easy cutting
- Induction-hardened precision cutting edges, hardness 62 - 64 HRC
- For flat and round material
- To cut all wire types including piano wire, 1.6 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1550942 | VDE 8250-160 H | 228 g | 160 mm |
| 1550950 | VDE 8250-180 H | 288 g | 180 mm |
| 1550969 | VDE 8250-200 H | 369 g | 200 mm |

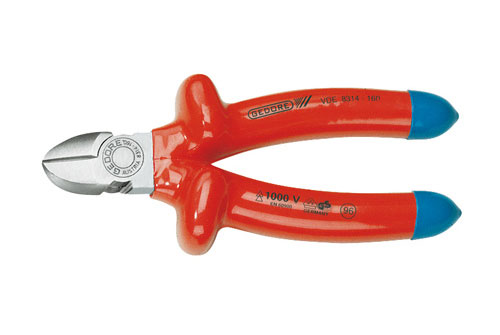

VDE 8314 VDE Side cutter with VDE dipped insulation
- With slender head - ideal for confined spaces
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For medium-hard wire, 1.6 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004,two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6743540 | VDE 8314-140 | 199 g | 140 mm |
| 6743620 | VDE 8314-160 | 253 g | 160 mm |

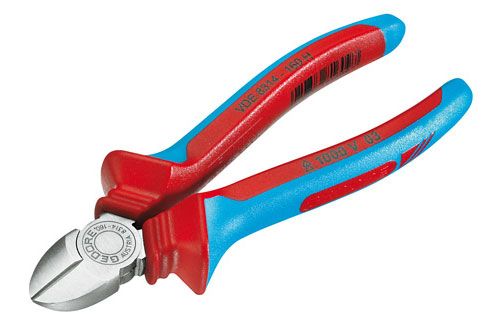

VDE 8314 H VDE Side cutter with VDE insulating sleeves
- With slender head - ideal for confined spaces
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For medium-hard wire, 1.6 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552155 | VDE 8314-140 H | 177 g | 140 mm |
| 1552163 | VDE 8314-160 H | 231 g | 160 mm |

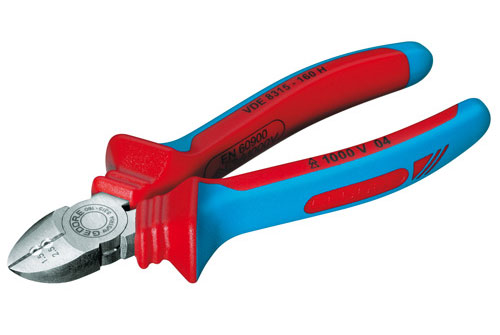

VDE 8315 H VDE Electricians'side cutter with VDE insulating sleeves
- Double-function electricians¡¦ side cutters for cutting and wire stripping
- Stripping holes for single or multi-strand conductors 1.5 and 2.5 mm2
- Induction-hardened precision cutting edges
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1742582 | VDE 8315-160 H | 231 g | 160 mm |

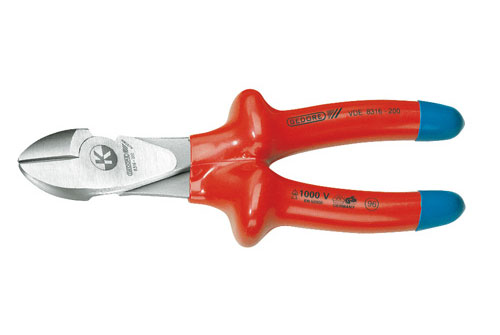

VDE 8316 VDE Power side cutter with VDE dipped insulation
- Good lever action for easy cutting
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For hard wire/piano wire - values see table
- Max. cutting capacity O 1.8 - 2.0 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1429590 | VDE 8316-180 | 285 g | 180 mm |
| 6742570 | VDE 8316-200 | 341 g | 200 mm |

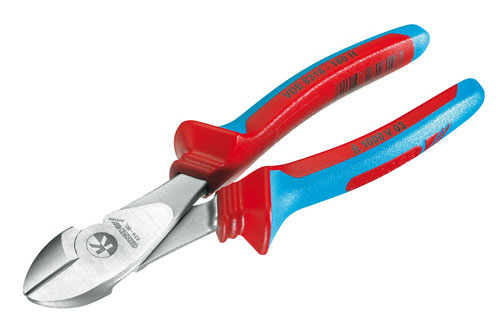

VDE 8316 H VDE Power side cutter with VDE insulating sleeves
- Good lever action for easy cutting
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For hard wire/piano wire - values see table
- Max. cutting capacity O 1.8 - 2.0 mm
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleevesup to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1550993 | VDE 8316-180 H | 267 g | 180 mm |
| 1551000 | VDE 8316-200 H | 344 g | 200 mm |
VDE 8367 VDE Heavy duty end cutting nippers
- Good lever action for easy cutting
- Induction-hardened precision cutting edges, hardness 63 - 65 HRC
- For hard wire/piano wire 1.6 mm
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 2324830 | VDE 8367-160 | 220 g | 160 mm |

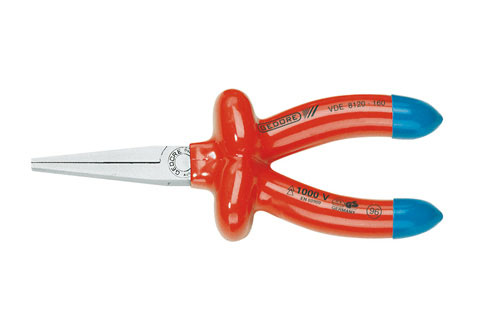

VDE 8120 VDE Flat nose pliers with VDE dipped insulation
- Long, flat jaws and serrated gripping surfaces
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6715330 | VDE 8120-160 | 185 g | 160 mm |

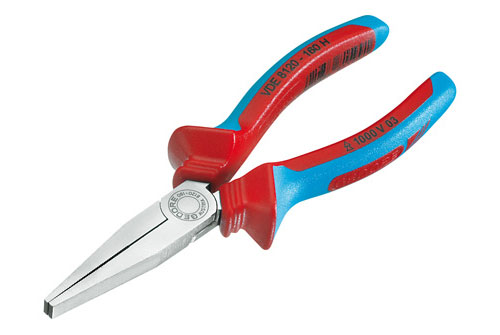

VDE 8120 H VDE Flat nose pliers with VDE insulating sleeves
- Long, flat jaws and serrated gripping surfaces
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552090 | VDE 8120-160 H | 175 g | 160 mm |

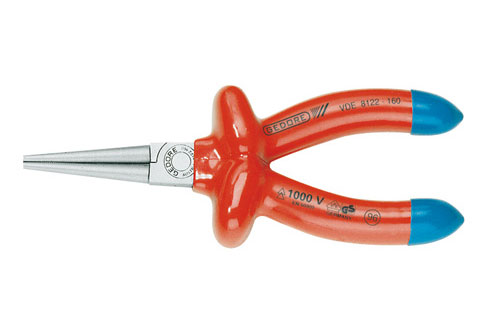

VDE 8122 VDE Round nose pliers with VDE dipped insulation
- Long, round jaws and serrated gripping surfaces
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6717110 | VDE 8122-160 | 170 g | 160 mm |

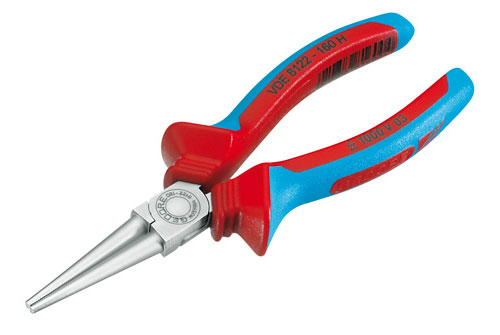

VDE 8122 H VDE Round nose pliers with VDE insulating sleeves
- Long, round jaws and serrated gripping surfaces
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552104 | VDE 8122-160 H | 154 g | 160 mm |

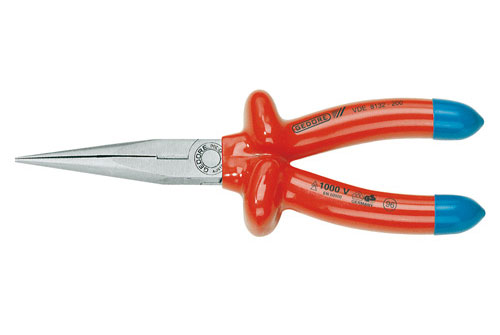

VDE 8132 VDE Telephone pliers with VDE dipped insulation, straight pattern
- Long, flat-round jaws, straight gripping faces, serrated
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6721570 | VDE 8132-160 | 193 g | 160 mm |
| 6721650 | VDE 8132-200 | 248 g | 200 mm |

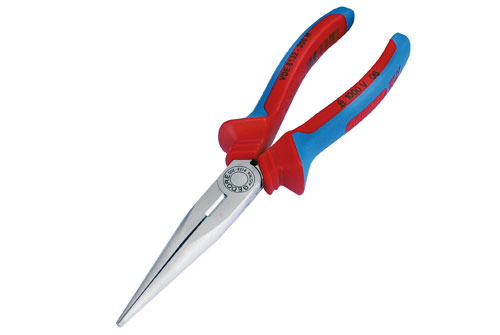

VDE 8132 H VDE Telephone pliers with VDE insulating sleeves, straight pattern
- Long, flat-round jaws, straight gripping faces, serrated
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552112 | VDE 8132-160 H | 164 g | 160 mm |
| 1552120 | VDE 8132-200 H | 235 g | 200 mm |

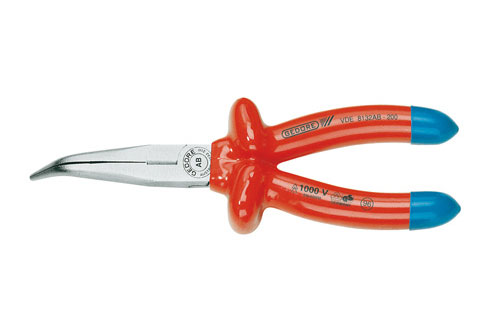

VDE 8132 AB VDE Bent nose telephone pliers with VDE dipped insulation, angled pattern
- Long, flat-round jaws, angled gripping surfaces, serrated
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6721730 | VDE 8132 AB-160 | 177 g | 160 mm |
| 6721810 | VDE 8132 AB-200 | 252 g | 200 mm |

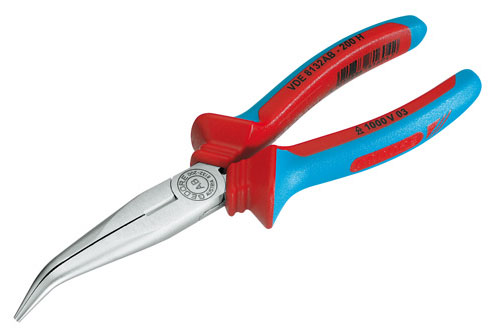

VDE 8132 AB H VDE Bent nose telephone pliers with VDE insulating sleeves, angled pattern
- Long, flat-round jaws, angled gripping surfaces, serrated
- Induction-hardened precision cutting edges, hardness 61 - 63 HRC
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1552139 | VDE 8132 AB-160 H | 173 g | 160 mm |
| 1552147 | VDE 8132 AB-200 H | 235 g | 200 mm |

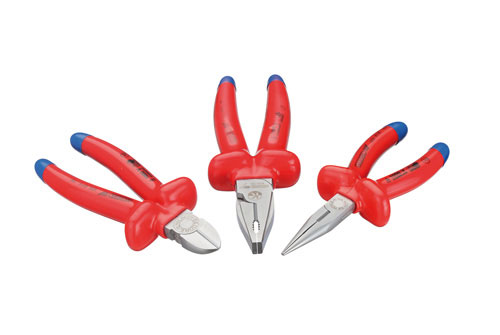

VDE S 8003 VDE Pliers set with VDE dipped insulation 3 pieces
- Packed in environmentally-friendly cardboard box
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900:2004, two-ply Check-Tool insulation
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 6708120 | VDE S 8003 | 760 g | |
VDE S 8003 H VDE Pliers set with VDE insulating sleeves 3 pieces
- Packed in environmentally-friendly cardboard box

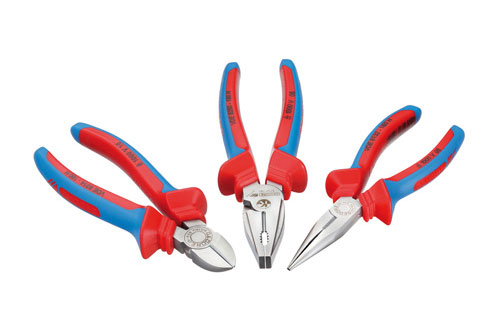

- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1550594 | VDE S 8003 H | 747 g | |

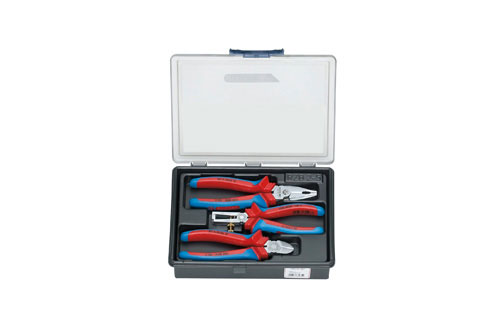

RZB2-5 VDE pliers set 3 pieces
- In rugged plastic case
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1708244 | RZB2-5 | 835 g | |

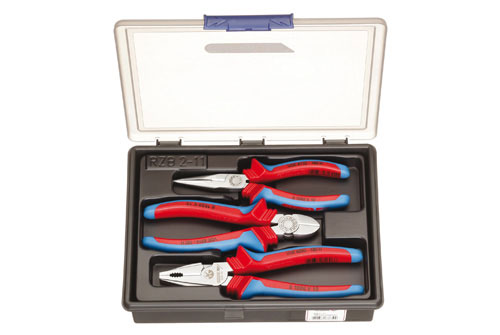

RZB2-11 VDE pliers set 3 pieces
- In rugged plastic case
- Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900:2004
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1692291 | RZB2-11 | 865 g | |

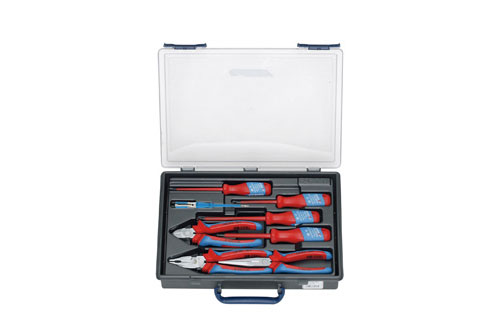

RZB1-17 VDE Tool set 8 pieces
| Code-No. | Article-No. | Weight | Length (L, L1) |
|---|
| 1828045 | RZB1-17 | 1700 g | |
|
