| Series / Type | Accuracy | Drive | Output drive | Ratio | Reaction arm | Range N·m tested and certificated | Weight (KG) | Anti-wind-up ratchet | Overload safety mechanism | Ceramic-Teflon® coating |
|---|
| Sun gear | Shearing square | Slipper non-destructive |
 |

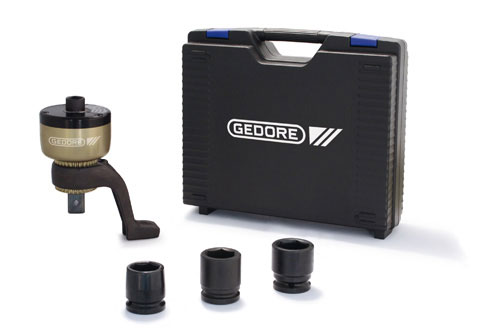

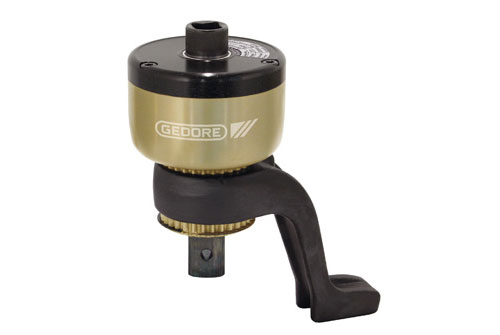

DVV-13Z | 3% | 1/2" | 3/4" | 1:5 | Z | 250 - 1.300 N.m | 1.9 |
| | * | | |
 |
DVI-20L | 3% | 3/4" | 1" | 1:4 | L | 500 - 2.000 N.m | 2.5 |
| | * | | |
 |
DVI-20Z | 3% | 3/4" | 1" | 1:4 | Z | 500 - 2.000 N.m | 2.9 |
| | * | | |
|

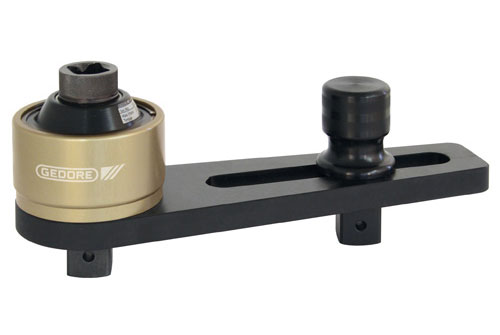

DVI-28L | 3% | 3/4" | 1" | 1:5,5 | L | 500 - 2.800 N.m | 3.4 |
| | * | | |
|

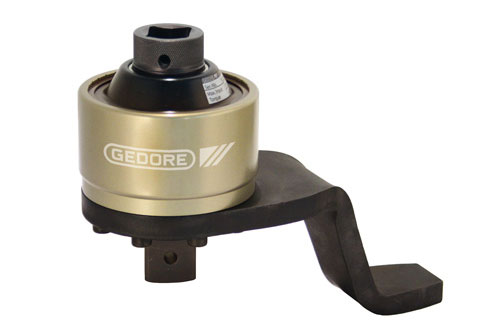

DVI-28Z | 3% | 3/4" | 1" | 1:5,5 | Z | 500 - 2.800 N.m | 3.9 |
| | | * | * |
 |

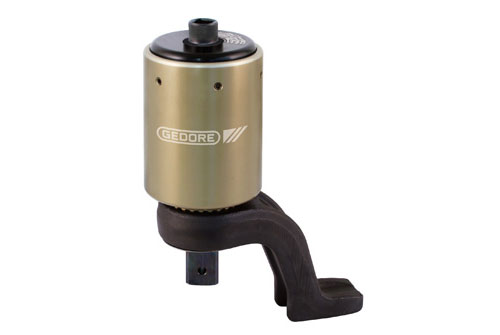

DVV-40Z | 3% | 1/2" | 1" | 1:16 | Z | 500 - 4.000 N.m | 5.4 |
* | | | * | * |
 |

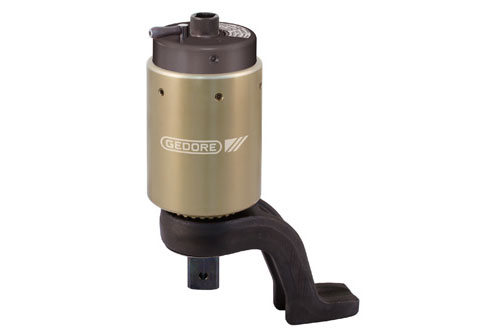

DVV-40ZRS | 3% | 1/2" | 1" | 1:16 | Z | 500 - 4.000 N.m | 5.9 |
* | | | * | * |
 |

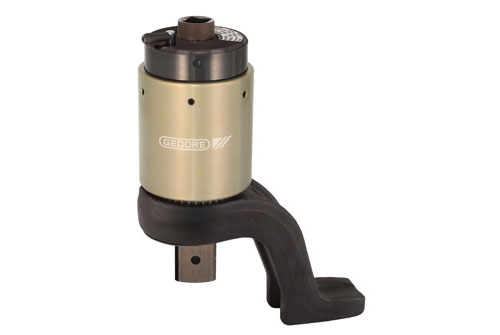

DVV-60ZRS | 3% | 3/4" | 1.1/2" | 1:18 | Z | 700 - 6.000 N.m | 10.4 |
* | | | * | * |
 |
DVV-80ZRS | 3% | 3/4" | 1.1/2" | 1:22 | Z | 750 - 8.000 N.m | 13.3 |
* | | | * | * |
 |

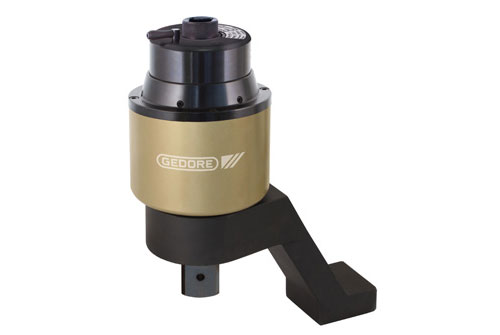

DVV-100ZRS | 3% | 3/4" | 1.1/2" | 1:28,5 | Z | 1.000 - 10.000 N.m | 13.7 |
* | | | * | * |
 |

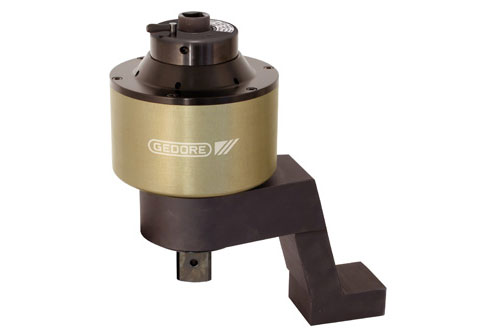

DVV-130ZRS | 3% | 3/4" | 1.1/2" | 1:39 | Z | 1.200 - 13.000 N.m | 20.7 |
* | | | * | * |
 |

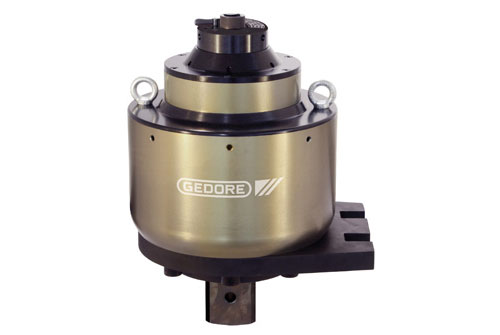

DVV-540RS | 3% | 3/4" | 2.1/2" | 1:175 | | 7.000 - 54.000 N.m | 64.4 |
* | | | * | * |
|
| |
| |
