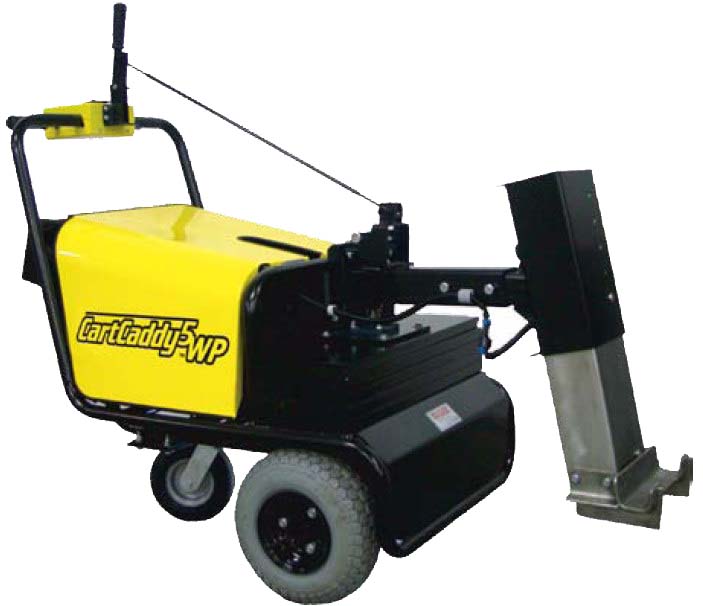

CartCaddy5WP
- Includes tubular steel frame
- 3 (12 volt) non-sealed batteries
- Variable speed forward & reverse twist grip controls
- High tech 0-3 mph variable speed controller
- Neutral throttle braking
- Battery discharge indicator
- Automatic charger Pedestrian Controlled tugger
- Color Safety Yellow
- Automatic Adjustable Attachment Lift Kit: Includes lever arm and 6" stroke 36 volt screw drive actuator, all wiring and up & down toggle switch on control box, stainless steel sleeve housing, easily raises attachment down/up to quickly attach to cart & transfer weight to unit, DOES NOT LIFT CART or RACK
- Fifth Wheel Arm w/Centering Shroud Handle : 16" square tubing with bearings & NEW 5TH ARM CENTERING SHROUD to hold 5th arm in center position when NOT under a load, and handle/lever rod to quickly LIFT & RELEASE 5th arm to allow easy 180 degree rotation for intricate turning and maneuvers
- Custom Adjustable Powder Coated Mild-Stell Attachment: per customer specific material handling bin dimensions
- Safety Horn Option (with lift): 36 volt, toggle switch on control box for easy operator use as needed
- High Output Motor/Controller w/Internal Electric Motor Brake: Needed for use on inclines to help slow/stop load & unit on gradual slope, extra power or moving load up incline, increased towbar from 320 lb. with standard motor/controller to 520 lb.
- Foam Filled GRAY-NON MARKING Tire Upgrade: Upgrades standard pneumatic tire, will never go flat or leave marks on flooring
- Safety Stop Switch: Instantly cuts backwards/reverse power to the machine when depressed, only allows unit to crawl forward when grips are turned to get unit away from operator if pinned
- 100lbs Weight Mounted over Transaxle
- AGM Battery Upgrade: Upgrades to 12 volt GR31 Sealed adjusted glass mat batteries, no free flowing acid, completely SEALED
- World Charger Upgrade: 36vlt 4.5amp charger 50 or 60 htz 100-240VAC.
- Safety Strobe Flashing Light on Pole: 36 volt flashing strobe light mounted to pole
- Motion alarm - reverse/forward movement sounds the alarm
CartCaddy5WP

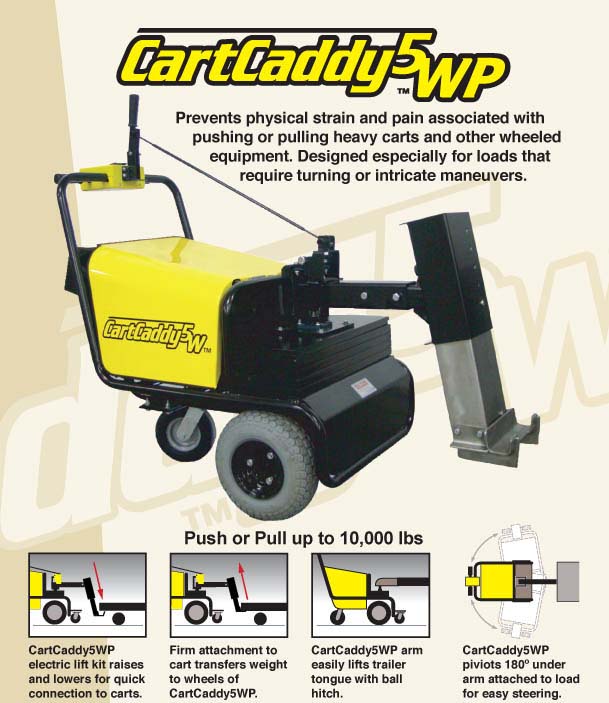

Prevents physical strain and pain associated with pushing or pulling heavy carts and other wheeled equipment. Designed especially for loads that require turning or intricate maneuvers.
Push of Pull up to 10,000 lbs
CartCaddy5WP electric lift kit raises and lowers for quick connection to carts.
Firm attachment to cart transfers weight to wheels of CartCaddy5WP.
CartCaddy5WP arm easily lifts trailer tongue with ball hitch.
CartCaddy5WP privots 180° to load for easy steering.

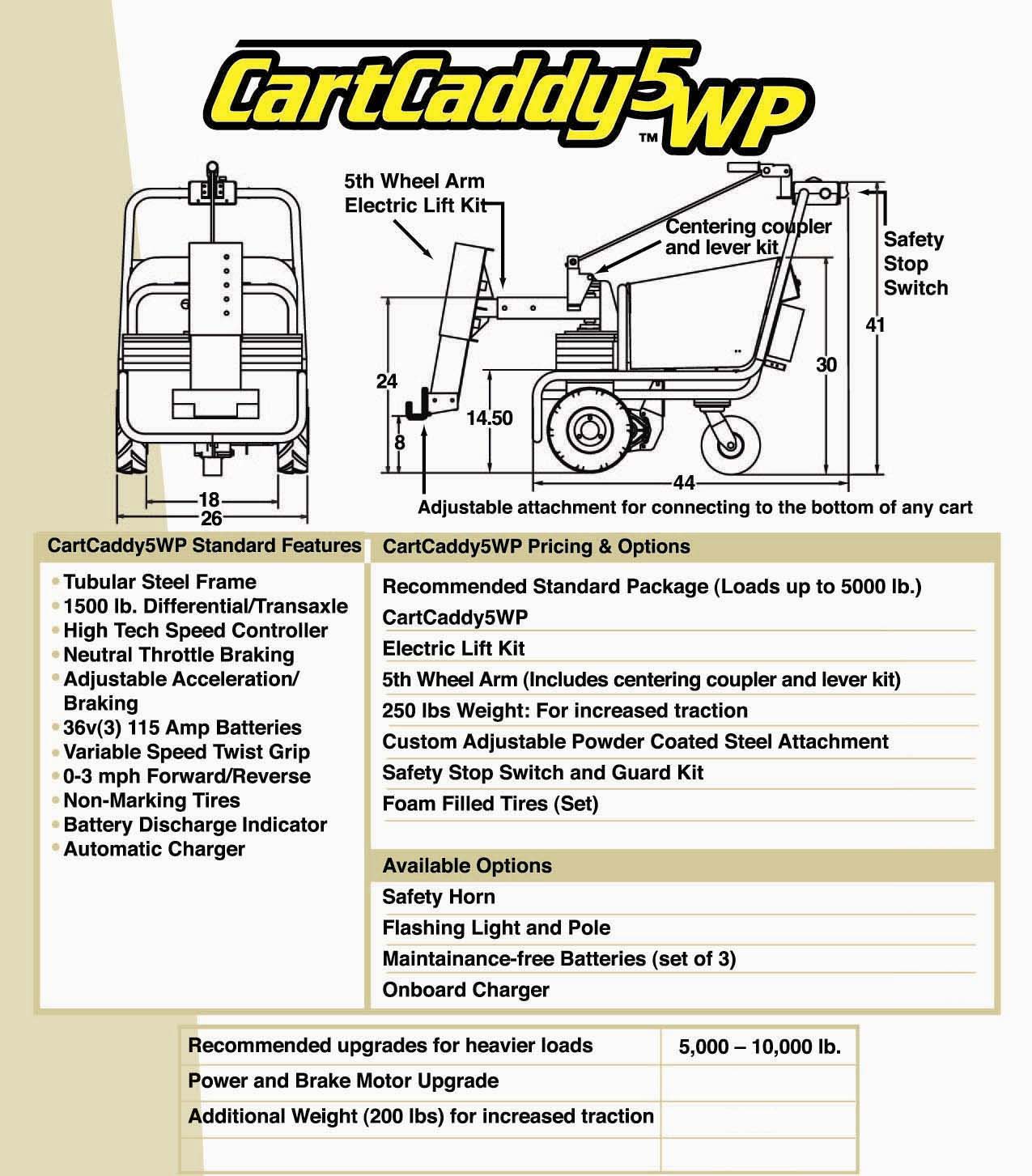

CartCaddy5WP
5th Wheel Arm Electric Lift Kit
Centering coupler and lever kit
Safety Stop Switch
Adjustable attachment for connecting to the bottom of any cart
CartCaddy5WP Standard Features
Tubular Steel Frame
1500 lb. Differential/Transaxle
High Tech Speed Controller
Neutral Throttle Braking
Adjustable Acceleration/Braking
36v(3) 115 Amp Batteriaes
Variable Speed Twist Grip
0-3 mph Forward/Reverse
Non-Marking Tires
Battery Discharge Indicator
Automatic Charger
CarCaddy5WP Pricing & Options
Recommand Standard Package (Loads up to 5000 lb.)
CartCaddy5WP
Electric Lift Kit
5th Wheel Arm (Includes centering coupler and lever kit)
250 lbs Weight: For increased traction
Custom Adjustable Powder Coated Steel Attachment
Safety Stop Switch and Guard Kit
Foam Filled Tires (Set)
Available Options
Safety Horn
Flashing Light and Pole
Maintainance-free Batteries (set of 3)
Onboard Charger
Recommand upgrades for heavier loads: 5,000 - 10,000 lb.
Power and Brake Motor Upgrade
Additional Weight (200 lbs) for increased traction
|
