BITS & SOCKETS > ANSON TOOLS > POWER BITS > SINGLE END


Phillips Torx Triangular
H


Phillips Specification
Model
 Tip Diameter F.L. OAL
5003 0 3.0 30 50
5014 1 4.5 30 50
5024 2 4.5 30 50
5026 2 6.0 30 50
7503 0 3.0 50 75
7524 2 4.5 50 75
7526 2 6.0 50 75
1014 1 4.5 75 100
1024 2 4.5 75 100
1026 2 6.0 75 100
1514 1 4.5 125 150
1524 2 4.5 125 150
1526 2 6.0 125 150

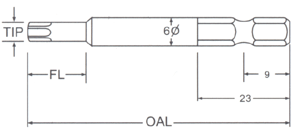

Torx Specification
Model Tip Diameter F.L. OAL
5T05 T5 2.5 30 50
5T06 T6 2.5 30 50
5T6H T6H 2.5 30 50 with hole
5T08 T8 3.0 30 50
5T8H T8H 3.0 30 50 with hole
5T10 T10 3.6 30 50
5T05 T10H 3.6 30 50 with hole
5T15 T15 4.3 30 50
5T5H T15H 4.3 30 50 with hole
7T05 T5 2.5 50 75
7T06 T6 2.5 50 75
7T08 T8 3.0 50 75
7T8H T8H 3.0 50 75 with hole
7T10 T10 3.6 50 75
7T0H T10H 3.6 50 75 with hole
7T15 T15 4.3 50 75
7T5H T15H 4.3 50 75 with hole

Triangular Specification
Model Tip Diameter F.L. OAL
TRI2050 2.0 -- -- 50
TRI2350 T6 -- -- 50

H Specification
Model Tip Diameter F.L. OAL
H50 H -- -- 50

The products shown above are only a small part of series,
please contact us for your enquiry.
