> ARBOGA A-2608 (M) |
| Arboga was established in 1932. Arboga has also been famous
for their manufacture of specially custom-made machinery. |
| |
|

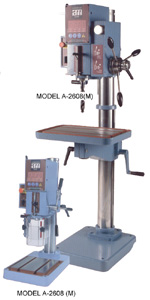

ARBOGA A-2608 (M)
- Drill head
the drill head is adjustable 360 degree around the column
and can be elevated and lowered.
- Gearbox
Hellical gears combined with steel gears against reinforced
fibre gears in the main gear box ensure higher operation
effciency, a more powerfuk drive machanism and smooth
operation. The noise level and maintenance of the gear
box are reduced to a minimum.
- Power feed
The feed gear box is provided with an automatic overload
protection device, which starts when the drill pressure
is too high. When the set depth is reached, the spindle
automatically returns to start. The feed can also be
interrupted manually.
|
ARBOGA A-2608 (M) Specifications
Driling
capacity |
0.25mm |
Quill movement |
135mm |
Tapping
capacity |
M 16 |
Morse taper |
MK\MT 3 |
Motor power
50Hz |
0.65kW / 0.9kW |
Motor power
60Hz |
0.8kW / 1.1kW |
Spindle
speed |
50Hz / 105-210-350-445-700-890-1450-2900 |
| 60Hz / 130-260-420-840-535-1070-1745-3480 |
Feed speed |
0.10-0.15-0.33 mm/rev. |
Net weight
(A-2608 / A-2608M) |
180 / 200Kg |
Net weight
(A-2608B / A-2608BM) |
130 / 150 Kg |
Size of
table |
500x350mm |
Size of
2-3 spindle tables |
600x1250mm |
- Working
area |
415x1160mm |
Size of
4 spindle tables |
600x1650mm |
- Working
area |
415x1550mm |
|

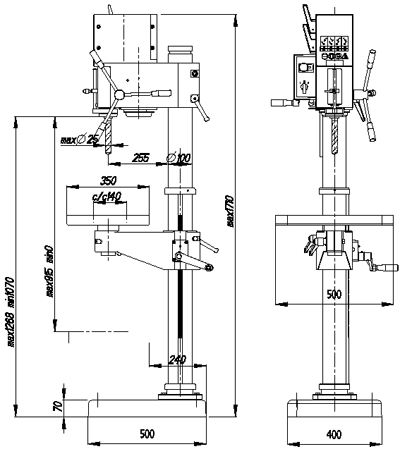

ARBOGA A-2608 (M) Dimension
|
| |
|
| |
The products shown above are only a small part
of series,
please contact us for
your enquiry. |
| |
